HDPE Coil Pipe Working Pressure 4 Bar [PE 80] Outer Diameter 125 mm Thickness 3.1 mm Color Black | Almona Company

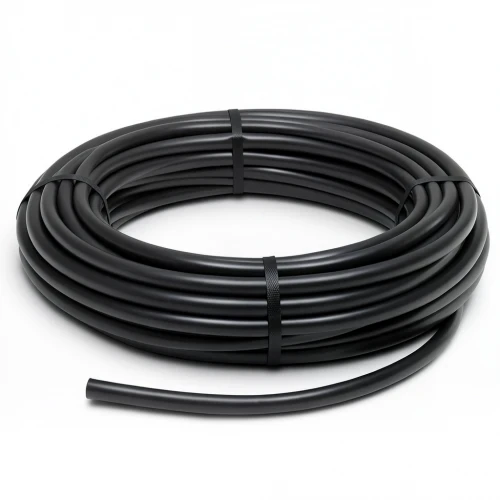

This HDPE coil pipe from Almona Company is engineered for efficient and reliable liquid transportation in irrigation systems. Manufactured from high-density polyethylene (PE 80), it offers exceptional durability and long-term performance, even under demanding conditions. With a working pressure of 4 bar and a 50-year maintenance-free lifespan, it is a cost-effective solution for water networks across Kuwait.

Key Features

• Outer diameter: 125 mm
• Wall thickness: 3.1 mm
• Weight: 1.23 kg/m
• Standard dimensional ratio (SDR): 41
• Pressure rating: 4 bar
• Pipe series (S): 20
• Material grade: PE 80
• Color: Black
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Manufactured according to DIN 8074/8075

Applications in Kuwait

Ideal for agricultural irrigation projects, municipal water supply lines, and industrial fluid handling in Kuwait's harsh climate. The black color provides UV resistance, ensuring reliable outdoor performance under the intense Kuwaiti sun. Available in coil lengths of 100, 200, 300, and up to 1500 meters for sizes 16-32 mm, and 100-meter coils for sizes 40-160 mm, making it versatile for projects of any scale in Kuwait City, Hawalli, and Al Ahmadi.
