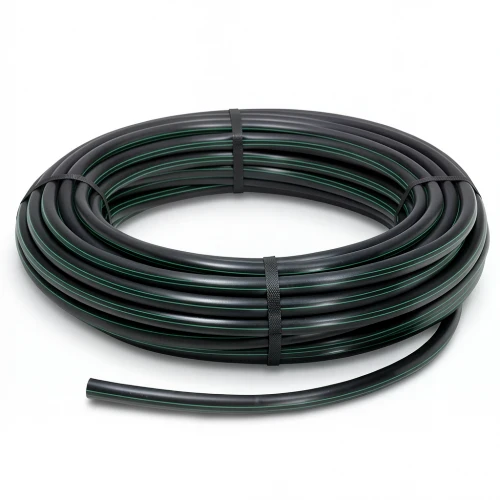

HDPE Plastic Coil Pipe Nominal Pressure 6 Bar [PE 63] OD 160 mm SDR 17.6 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe from Almona Factory is engineered for reliable water transportation networks, meeting DIN 8074/8075 standards. Made from high-density polyethylene, it offers exceptional durability and performance, making it a preferred choice for infrastructure projects across Kuwait, from Kuwait City to Al Ahmadi.

Designed to withstand high water pressures, this pipe ensures a maintenance-free service life of up to 50 years, reducing long-term operational costs. Its resistance to corrosion, rust, and chemical exposure (pH 2–12) makes it suitable for diverse applications, including potable water supply, irrigation, and industrial systems. The pipe's flexibility provides excellent earthquake resistance, a valuable feature for regions with seismic activity, and its UV resistance ensures reliable performance under Kuwait's intense sun.

Key Specifications

• Outside diameter: 160 mm
• Standard Dimension Ratio (SDR): 17.6
• Pipe Series (S): 8.3
• Material grade: PE 63
• Nominal pressure: 6 bar
• Wall thickness: 9.1 mm
• Minimum Required Strength (MRS): 6.3 MPa
• Weight: 4.35 kg/m
• Design safety factor: C=1.25, σs = 5.04 MPa
• Color: Black with green stripes
• Available in coils of 100 meters (for sizes 40 mm to 160 mm)

Lightweight and easy to transport, this coil pipe simplifies installation and handling, making it ideal for projects in Hawalli and other urban areas. Its long service life and robust performance ensure a cost-effective solution for water networks requiring high-pressure capability.
