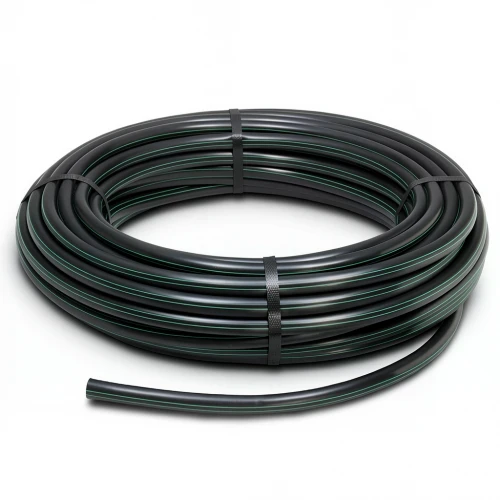

HDPE Coil Pipe Pressure 4 Bar [PE 80] Outside Diameter 63 mm Thickness 1.8 mm Color Black | Almona Factory

This HDPE coil pipe from Al-Mona Factory is engineered for reliable performance in Kuwait's demanding climate. Manufactured from high-density polyethylene (PE 80) with a standard dimensional ratio of SDR 41, it delivers a pressure rating of 4 bar and a minimum required strength of 8 MPa, ensuring long-term durability.

Designed for irrigation systems and water distribution, this pipe offers exceptional resistance to corrosion, chemicals, and external impacts. Its flexibility simplifies installation, especially in tight spaces, and its 50-year maintenance-free service life reduces operational costs. The black color provides UV protection, making it suitable for outdoor use under the intense Kuwaiti sun.

Key specifications:

• Outside diameter: 63 mm
• Wall thickness: 1.8 mm
• Material weight: 0.364 kg/m
• Pressure rating: 4 bar
• Pipe series (S): 20
• Design stress (σs): 6.4 MPa, safety factor C=1.25
• Manufactured to DIN 8074/8075 standards
• Available in coils: 100m, 200m, 300m, up to 1500m (for sizes 16-32mm); 100m coils for sizes 40-160mm

Ideal for agricultural projects in Al Ahmadi, residential landscaping in Hawalli, and municipal water networks in Kuwait City, this pipe meets the rigorous demands of local infrastructure.
