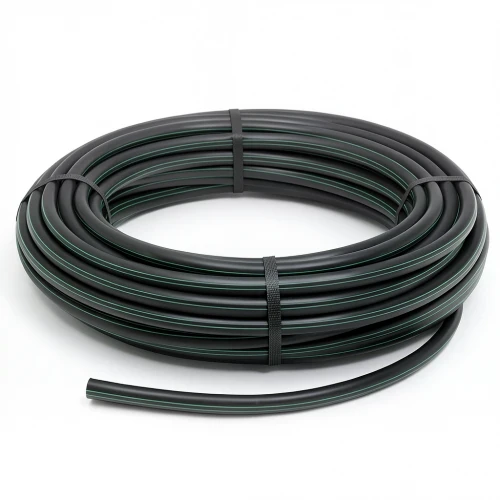

HDPE Polyethylene Coil Pipe Nominal Pressure 15.7 Bar [PE 63] OD 90 mm SDR 6 Color Black | Almona Factory

This HDPE coil pipe from Al Mona Factory is engineered for high-pressure performance and long-term reliability, making it a top choice for irrigation and water distribution networks across Kuwait. Its high-density polyethylene construction delivers exceptional resistance to impact, abrasion, and environmental stress, ensuring dependable service in the harsh desert climate.

With a nominal pressure of 15.7 bar and an SDR 6 rating, this pipe handles demanding applications with ease. The 90 mm outer diameter and PE 63 material grade provide a robust solution for both agricultural and municipal projects. The black color offers UV protection, extending the pipe's lifespan when exposed to sunlight.

Key Features

• Nominal pressure: 15.7 bar
• Outside diameter: 90 mm
• Wall thickness: 15.0 mm
• Standard dimension ratio: SDR 6
• Pipe series (S): 2.5
• Material grade: PE 63 (MRS 6.3 MPa)
• Design stress: 3.94 MPa, safety factor C=1.6
• Weight: 3.51 kg/m
• Black color for UV resistance
• Manufactured to DIN 8074/8075
• Available in coils of 100, 200, 300, up to 1500 meters (for sizes 16-32 mm) and 100-meter coils for sizes 40-160 mm

This pipe is ideal for irrigation systems, water supply lines, and industrial applications in Kuwait, where high temperatures and water pressure demand durable materials. Its low maintenance requirements reduce operational costs over time, making it a cost-effective investment for projects in Kuwait City, Hawalli, and Al Ahmadi.
