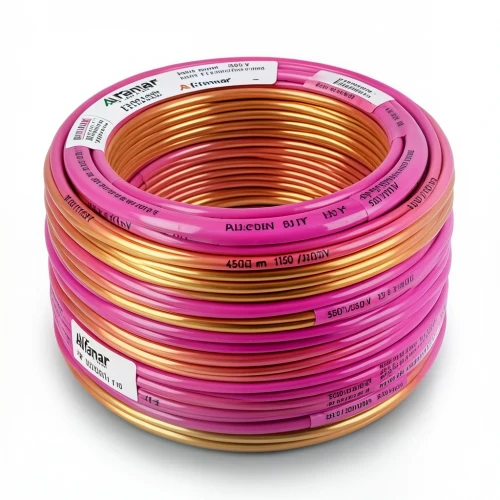

500 sq mm Stranded Copper Wire, Heat Resistant PVC Insulated, 450/750V, Coil Length 100 yards | Alfanar

This premium stranded copper wire from Alfanar is engineered for demanding electrical installations, delivering reliable performance and long-lasting durability. Manufactured to meet stringent British Standards (BS) and International Electrotechnical Commission (IEC) specifications, this CU/PVC wire ensures safe and efficient power distribution in commercial and industrial settings across Kuwait.

The heat-resistant PVC insulation (rated at 90°C) provides a robust protective layer, preventing electrical leakage, shocks, and abrasion. It also shields the conductor from harmful UV rays and resists moisture, making it suitable for Kuwait's harsh climate and high-temperature environments. With a large cross-sectional area of 500 mm², this wire is designed for high-current applications, ensuring minimal voltage drop and optimal conductivity.

Ideal for fixed internal installations, this wire is perfect for wiring control panels, machinery, and equipment that operate at elevated temperatures. It is also well-suited for lighting networks and power systems in large-scale projects, such as commercial complexes, industrial facilities, and infrastructure developments in Kuwait City, Hawalli, and Al Ahmadi.

Key Features

• Stranded copper conductor for flexibility and easy installation
• Heat-resistant PVC insulation (90°C) for enhanced safety
• Rated voltage: 450/750V
• Conductor size: 500 mm² (61 wires, 3.38 mm diameter)
• Low DC resistance (0.0366 ohm/km) for efficient power transmission
• Nominal insulation thickness: 2.8 mm; overall diameter: 32.1 mm
• Weight: 4830 kg/km
• Compliant with BS EN 50525-2-31, IEC 60227-3, and GSO standards
• White color, available in various lengths
