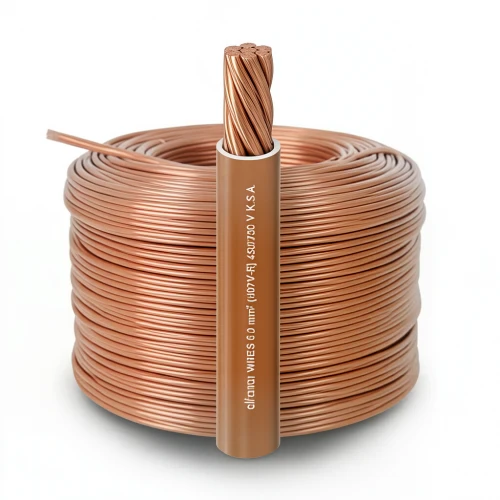

Stranded Wire 450/750V, Copper Conductor, PVC Insulation, 35mm Size, 100 Yards Length | Alfanar

This 35 mm² stranded copper wire from Alfanar is engineered for reliable power distribution in fixed internal installations, a common requirement in Kuwait's residential, commercial, and industrial projects. With a 450/750V rating and PVC insulation rated for 70°C, it delivers consistent performance even in elevated ambient temperatures typical of Kuwait's climate.

The conductor is made of high-purity copper, formed into a 7-strand configuration for flexibility and durability. The PVC insulation provides excellent protection against electrical leakage, physical abrasion, and moisture, ensuring long service life in humid coastal areas like Salmiya or Ahmadi. It also resists UV damage, making it suitable for indoor applications where sunlight exposure may occur through windows or skylights.

This cable is ideal for wiring control boards, machinery, instruments, lighting networks, and power systems. Its brown phase core color aids in identification during installation, simplifying electrical work in projects across Kuwait City, Hawalli, and Al Ahmadi. Manufactured to BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards, it meets international safety and quality requirements.

Key Features

• Copper conductor, stranded (7 wires) for flexibility
• PVC insulation rated for 70°C operating temperature
• Voltage rating: 450/750V
• Conductor cross-section: 35 mm²
• Max DC resistance at 20°C: 0.524 ohm/km
• Nominal insulation thickness: 1.2 mm
• Approx. overall diameter: 9.3 mm
• Weight: 345 kg/km
• Length: 100 yards per coil (other lengths on request)
• Color: brown
• Complies with BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3
