0.5mm Copper Flexible Wire 300/500V, PVC Insulation 0.6mm Thick | Alfanar

This Alfanar flexible copper wire is engineered for reliable performance in Kuwait's demanding electrical installations. With a 0.5 mm² cross-section and 300/500V rating, it meets the rigorous requirements of both residential and commercial projects across Kuwait City, Hawalli, and Al Ahmadi.

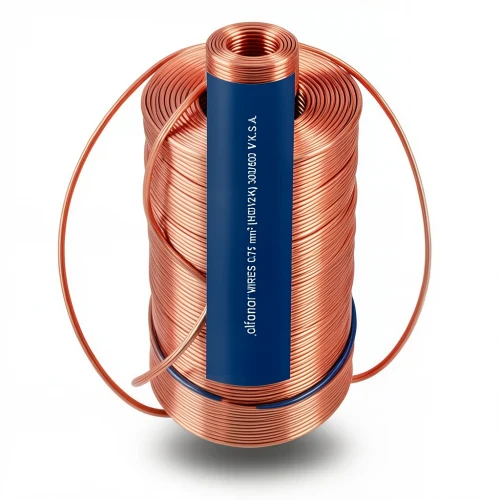

The wire features a high-grade copper conductor with a flexible stranded construction (16 wires of 0.2 mm diameter), ensuring excellent conductivity and ease of handling during installation. The PVC insulation, with a nominal thickness of 0.6 mm, provides robust protection against moisture, corrosion, and mechanical wear—critical in Kuwait's humid coastal climate and dusty environments.

Key Features

• Conductor: Flexible copper, 0.5 mm² cross-sectional area
• Insulation: PVC rated for 70°C, 0.6 mm thickness
• Voltage rating: 300/500V
• Max DC resistance: 39 ohm/km at 20°C
• Approx. overall diameter: 2.1 mm; weight: 10 kg/km
• Length: 300 feet per coil (100 yards); other lengths available on request
• Color: Blue
• Complies with BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards

This wire is ideal for internal wiring in electric motors, transformers, lighting fixtures, and control equipment. Its flexibility simplifies routing in tight spaces, making it a preferred choice for electricians and contractors in Kuwait's fast-growing construction sector.
