Copper Flexible Wire, Size 25sq mm, 450/750volts, PVC Insulation | Alfanar

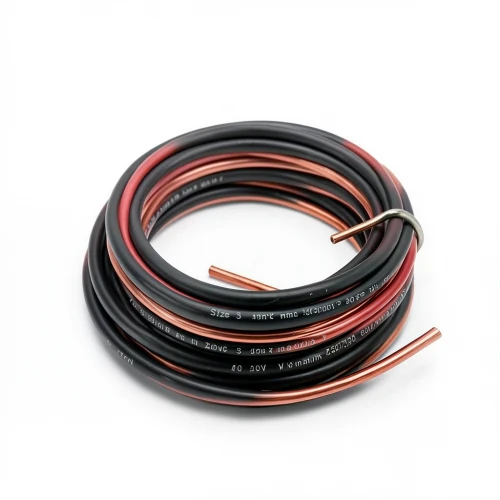

This flexible copper wire from Alfanar is engineered for reliable performance in demanding electrical installations across Kuwait. With a cross-sectional area of 25 mm² and a voltage rating of 450/750 volts, it delivers efficient power transmission for a wide range of applications, from industrial machinery to commercial lighting systems.

The PVC insulation provides excellent dielectric strength and moisture resistance, safeguarding the copper conductor against leakage, corrosion, and mechanical wear. This ensures long-lasting durability, even in Kuwait's harsh climate, where high temperatures and humidity can affect inferior wiring. The flexible conductor, comprising 196 fine wires, allows for easy bending and routing in tight spaces, making it a preferred choice for electricians and contractors.

Key Features

• Conductor: Flexible copper (196 wires, 0.4 mm diameter)
• Insulation: PVC rated for 70°C, nominal thickness 1.2 mm
• Voltage rating: 450/750 V
• Max DC resistance at 20°C: 0.780 ohm/km
• Overall diameter: 9.1 mm; weight: 273 kg/km
• Length: 100 yards per coil (custom lengths on request)
• Color: Black
• Standards: BS EN 50525-2-31, IEC 60227-3, SASO-GSO-IEC 60227-3

This wire is ideal for internal wiring in electric motors, transformers, control panels, and lighting fixtures. It is also suitable for electronic appliances used in measurement and regulation. Whether you are working on a residential project in Hawalli or a large commercial development in Kuwait City, this Alfanar wire meets the highest quality standards.
