HMF-1523 Woven Stainless Steel Metal Fabric
(2 Product Views)
High-density HMF-1523 woven stainless steel fabric with 0% open area, designed for critical filtration and dust collection applications.
in stock
Product description

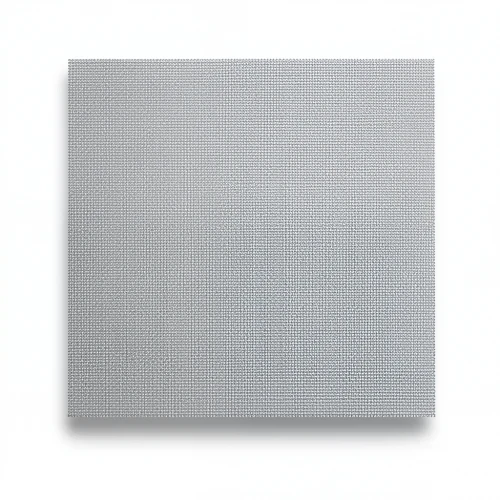

The HMF-1523 is a precision-engineered woven metal fabric constructed from high-grade stainless steel. It features a robust construction with 1.5 mm warp wires spaced at an 8.5 mm pitch and 2.5 mm weft wires at a 3.88 mm pitch. This specific weave configuration results in a maximum thickness of 2.5 mm and a theoretical weight of 13.58 kg/m².
Key Features
- Zero Open Area: The 0% open area design ensures absolute containment, making it ideal for applications where particle escape must be strictly prevented.
- Durable Stainless Steel: Resistant to corrosion and high temperatures, ensuring long service life in harsh industrial environments.
- High Structural Integrity: The heavy gauge wires (1.5 mm and 2.5 mm) provide exceptional mechanical strength and resistance to abrasion.
Applications
Due to its dense weave and zero open area, the HMF-1523 is commonly utilized in industrial filtration systems requiring maximum containment, such as dust collection hoods, abrasive blasting enclosures, and specialized ventilation setups where fine particulate control is critical.
