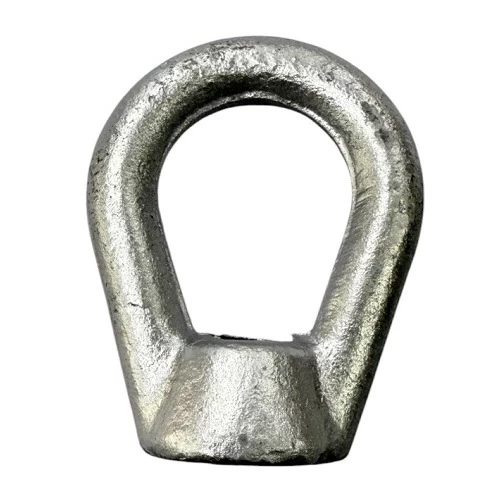

Oval Eye Nut M16, Made of Hot Dip Galvanized Steel

Product description

Oval Eye Nut M16 made of hot-dip galvanized steel, ensuring corrosion resistance. It is precisely and robustly engineered to provide a secure lifting point. Ropes, chains, or hooks are attached to the eye loop for lifting equipment, machinery, or other loads.

• Thread Diameter: M16 / IRAM 5134
• Material: F-24 Steel according to IRAM IAS U 500-512
• Surface Protection: Hot-dip galvanized coating in accordance with IRAM 20022
• Test Force: 3600 daN
• Inner Width of the Upper Curved Section: 13 mm
• Diameter of the Upper Cylindrical Section: ϕ20 mm
• Diameter of the Lower Conical Base: ϕ32 mm
• Total Outer Width of the Upper Curved Section: 56 mm
• Material Thickness at the Upper Curved Section: 13 mm
• Height from the Start of the Upper Curve to the Start of the Threaded Section: 40 mm
• Height of the Threaded Section: 24 mm
• Total Height of the Lifting Eye: 77 mm
• Maximum Inner Width of the Loop Section: 30 mm
• Minimum Inner Width of the Loop Section before the Threaded Part: 20 mm
