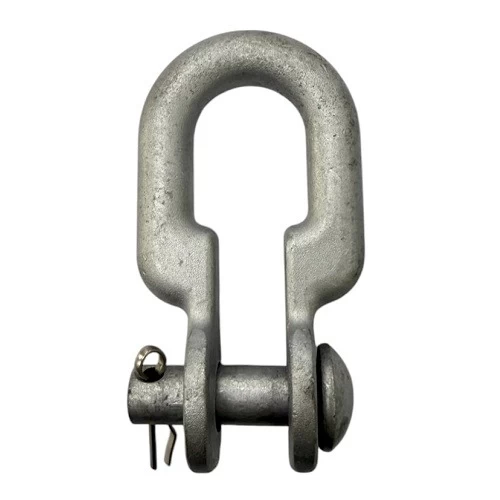

Bow Shackle with Pin Wing, Made of HDG Steel, Height 70mm
(77 Product Views)
Bow shackle with pin wing, 70 mm in height, made of hot-dip galvanized steel to ensure corrosion resistance.
Product description
Bow shackle with pin wing, made of hot-dip galvanized steel to ensure corrosion resistance. It is primarily used to connect ropes or metal chains to cranes or hooks, and also helps in load transfer or securing equipment during transport or lifting.
- Overall height: 70 mm
- Inner top radius: R32 and R16
- Side hole (for inserting the locking pin): Diameter 4 mm
- Upper hole diameter: 16 mm
- Diameter of the lower circular section: 40 mm
- Diameter of the center hole in the lower circle: 18 mm
- Surface protection: Hot-dip zinc plating according to IRAM 20022 (Annex D)
- General tolerances comply with standard: E.T.N. 04
- Test force: 3600 daN (decanewtons)
