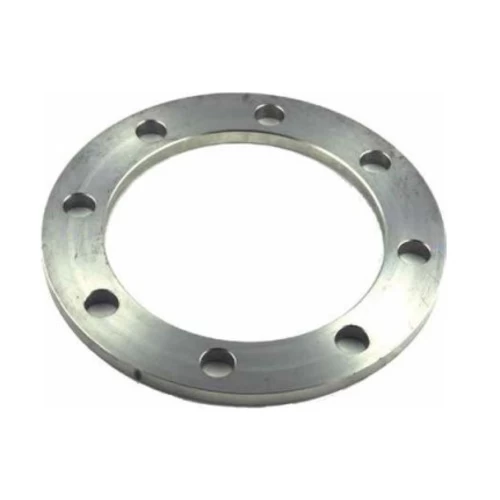

Pipes Flange Size 200 mm, Thickness 13 mm, UPI Factory
(553 Product Views)
Pipes Flange Size 200 mm, Thickness 13 mm, UPI Factory, Available in a variety of sizes and at the best prices.
Product description
Flange, produced by Union Pipe Factory, made of high-quality materials, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.
- Size: 200 mm
- Pipe size: 200 mm (8 inch)
- Pitch Circle Diameter (P): 298.5 mm
- Inner Diameter (I): 235 mm
- Outer Diameter (D): 343 mm
- Thickness (T): 13 mm
- Number of holes×Hole diameter: 8×23 mm
- Bolt size: 3/4 inch
- According to standard: ANSI
