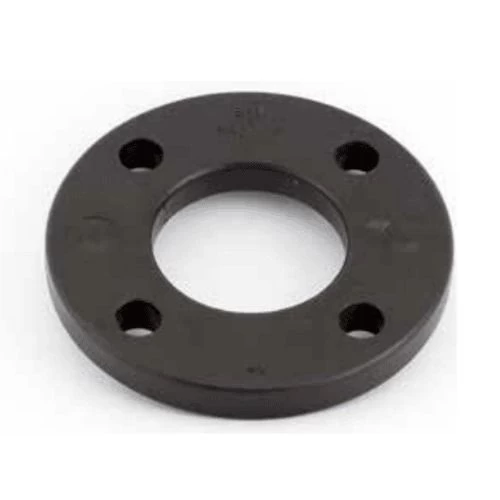

Plastic flange HDPE, 180 mm size, 285 mm outer diameter, pressure 16, black color, it provides excellent UV resistance, produced by Union Pipe Factory.
Product description
HDPE plastic flange (High-Density Polyethylene) produced by Union Pipe Factory, made of high quality materials. It offers high chemical resistance and excellent corrosion resistance, making it ideal for harsh environments. The flange is also highly durable and strong, allowing to withstand ground pressure and heavy operation without losing performance. it also provides excellent UV resistance, making it suitable for use in different environmental conditions without degrading. It is widely used in hot and cold water supply under high pressure, as well as in sewage systems. Available in a variety of sizes at the best prices.
- Size: 180 mm
- Flange size: 150 mm (6 inch)
- Pitch Circle Diameter (P): 240 mm
- Inner Diameter (I): 185 mm
- Outer Diameter (D): 285 mm
- Thickness (T): 22 mm
- Number of holes ร Hole diameter: 8x22 mm
- Bolt size: M20
- Pressure: 16 bar
- Standard: BS EN 1092
