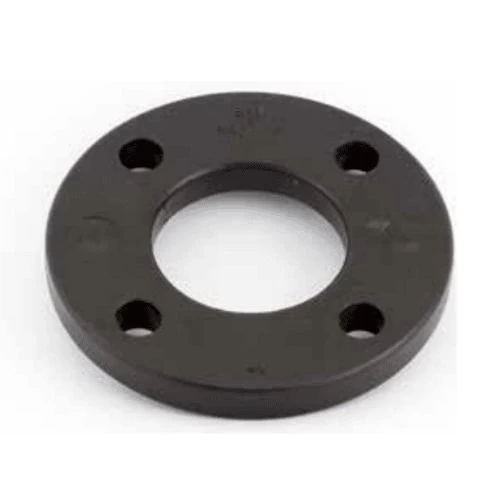

Flat PP Coated Steel Flange, 225 mm Size, Thickness 22 mm, Pressure 16 Bar, Black Color | Union Pipes Factory

PP Coated Steel Flange (Polypropylene) produced by Union Pipe Factory, made of high quality materials. It offers high chemical resistance and excellent corrosion resistance, making it ideal for harsh environments. The flange is also highly durable and strong, allowing to withstand ground pressure and heavy operation without losing performance. it also provides excellent UV resistance, making it suitable for use in different environmental conditions without degrading. It is widely used in hot and cold water supply under high pressure, as well as in sewage systems. Available in a variety of sizes at the best prices.

• Size:225 mm
• Flange size: 200 mm (8 inch)
• Pitch Circle Diameter (P): 295 mm
• Inner Diameter (I): 240 mm
• Outer Diameter (D): 340 mm
• Thickness (T): 22 mm
• Number of holes × Hole diameter: 12 × 22 mm
• Bolt size: M20
• Pressure: 16 bar
• Standard: BS EN 1092
