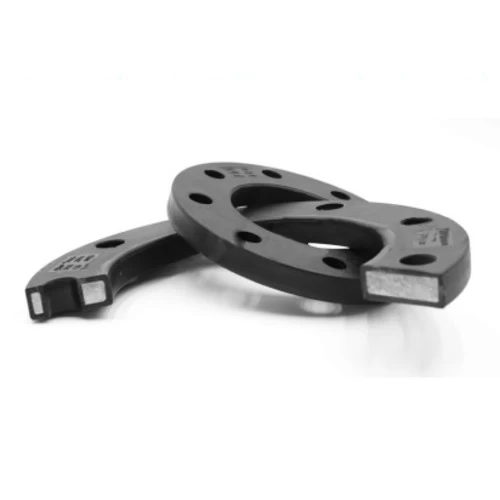

Flat Flange Size 3 inch, Thickness22mm, UPI Company
(461 Product Views)
Flat Flange Size 3 inch, Thickness22mm, UPI Company, with high-pressure resistance, available in a variety of sizes, and offered at the best prices.
Product description
Flange produced by Union Pipe Factory, made of high-quality materials, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.
- Size : 3 inch
- Nominal diameter (dn): 90 mm
- Outer diameter (D): 200 mm
- Spacing between holes (K): 152 mm
- Ring width (B): 108 mm
- Thickness (h): 22 mm
- Number of holes (n): 4
- Hole diameter (d): 20 mm
- Weight: 2.08 kg
- Class: 150
- According to standard: ASME B16.5
