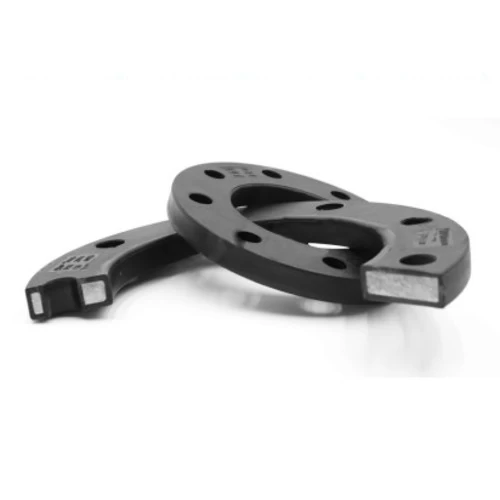

Flat Flange Size 11/2 inch, Thickness 16 mm, Union Pipes Company
(539 Product Views)
Flange size 11/2 inch, thickness 16 mm, produced by Union Pipe Factory,It can be effectively used in drainage systems. It is widely suitable for connecting hot and cold water pipes.
Product description
Flange produced by Union Pipe Factory, made of high-quality materials, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.
- Size :11/2 inch
- Nominal diameter (dn): 50 mm
- Outer diameter (D): 150 mm
- Spacing between holes (K): 98 mm
- Ring width (B): 63 mm
- Thickness (h): 16 mm
- Number of holes (n): 4
- Hole diameter (d): 16 mm
- Weight: 0.98 kg
- Class: 150
- According to standard: ASME B16.5
