Flange Size 1 inch, Thickness 16 mm, UPI Factory
(927 Product Views)

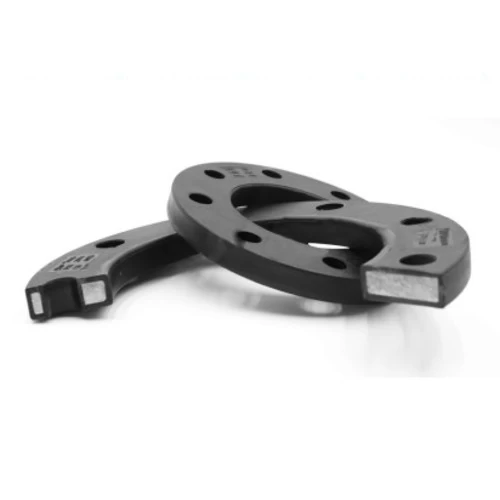

Flange size 1 inch, thickness 16 mm, produced by Union Pipe Company, It is capable of withstanding high pressures, making it the ideal choice for connecting hot and cold water pipes.
Product description
Flange produced by Union Pipe Factory, made of high-quality materials, characterized by strength, durability, resistance to rust and corrosion, ease of installation and the ability to withstand high pressure, which makes it suitable for wide use in connecting hot and cold water pipes, as well as in sewage systems, available in a variety of sizes and at the best prices.
- Size: 1 inch
- Nominal diameter (dn): 32 mm
- Outer diameter (D): 120 mm
- Spacing between holes (K): 79 mm
- Ring width (B): 44 mm
- Thickness (h): 16 mm
- Number of holes (n): 4
- Hole diameter (d): 16 mm
- Weight: 0.50 kg
- Class: 150
