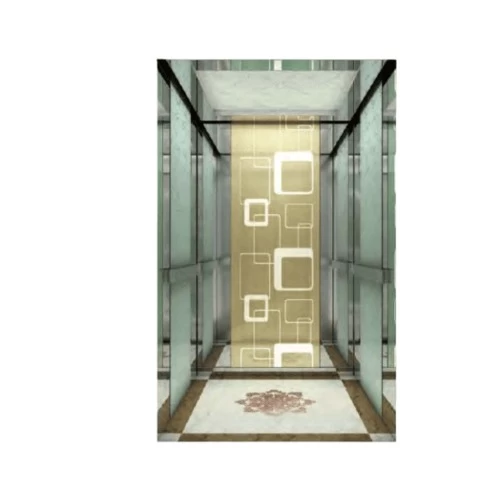

People Elevator with Small Machine Room, Glass Walls, Flat Stainless Handrail, PVC Floor, 800 KG Load, 10 Persons, 1.75 m/s Operating Speed

Passenger elevator with a small machine room, designed with a modern aesthetic featuring printed safety glass panels and mirror stainless steel walls that create a bright and spacious atmosphere. The ceiling includes a polished stainless steel frame and an acrylic light-emitting panel for smooth and balanced illumination. A flat stainless steel handrail offers comfort and stability, while the PVC flooring ensures easy cleaning and durability for everyday use. This elevator is ideal for commercial and residential buildings that want a stylish yet practical solution. Equipped with full safety features including door sensors, emergency lighting, alarm, and auto-brake system.

• Ceiling material: Mirror stainless steel + acrylic light-emitting panel
• Wall material: Printed safety glass + reflective stainless steel
• Handrail material: Flat stainless steel
• Floor material: PVC
• Color: Silver
• Load capacity: 800 KG
• Number of passengers: 10 persons
• Speed: 1.75 m/s
• Car dimensions: 1400 × 1350 mm
• Door opening dimensions: 800 × 2100 mm
• Shaft dimensions: 2000 × 2000 mm
• Machine room dimensions: 2000 × 2000 mm
• Pit depth: 1600 mm
• Top floor height: 4700 mm
• Motor power: 9.4 kW
• Reaction force R1: 44800 N
• Reaction force R2: 27400 N
• Reaction force R3: 5400 N
• Load force P1: 72000 N
• Load force P2: 56000 N
• Brand: FUJI
• Design code: JG-K17
• Model: TKJ800/1.75
