People Elevator Compact Design 630 KG Load 1.5 m/s Speed 8 Persons Capacity
(694 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
People Elevator Compact Design 630 KG Load 1.5 m/s Speed 8 Persons Capacity, characterized by its ability to meet safety and security requirements at the highest standards, and an environment friend thanks to energy -saving operating techniques.
in stock
Product description

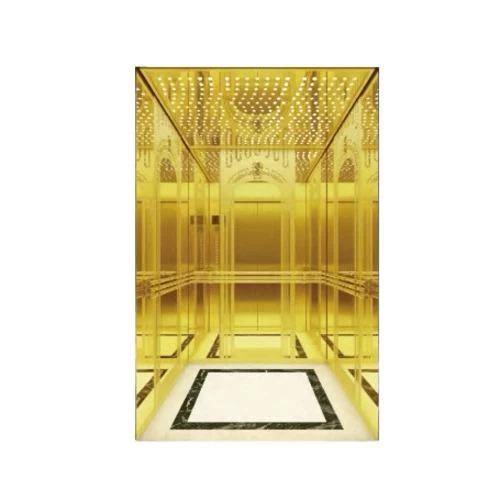

A compact machine roomless passenger elevator ideal for buildings with limited space. It features etched titanium mirror walls, a perforated stainless steel ceiling with white organic panel and aluminum frame, a triple titanium stainless steel handrail, and a practical PVC floor. The design delivers maximum functional efficiency with a refined look. Available in multiple designs for residential and commercial use.
- Ceiling material: Perforated stainless steel mirror with white organic board and aluminum frame
- Wall material: Etched titanium mirror with vibration finish
- Handrail material: Triple titanium stainless steel
- Floor material: PVC
- Color: Gold
- Load capacity: 630 KG
- Number of passengers: 8 persons
- Speed: 1.5 m/s
- Car dimensions: 1200x1350 mm
- Door opening dimensions: 700x2100 mm
- Shaft dimensions: 1850x1750 mm
- Pit depth: 1600 mm
- Top floor height: 4700 mm
- Motor power: 6.3 kW
- Reaction force R1: 19800 N
- Reaction force R2: 26400 N
- Load force P1: 58000 N
- Load force P2: 45600 N
- Brand: FUJI
- Design code: JG-K03
- Model: TKJW630/1.5
