MRL Passenger Compact System, 630 KG Load, 1 m/s Speed, 8 Persons, Curved Stainless Ceiling, Etched Mirror Wall, PVC Flooring
(658 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
MRL Passenger Compact System, 630 KG Load, 1 m/s Speed, 8 Persons, Curved Stainless Ceiling, Etched Mirror Wall, PVC Flooring It features etched mirror walls with a sleek linear finish, The cabin is built without handrails for a more open feel
Product description

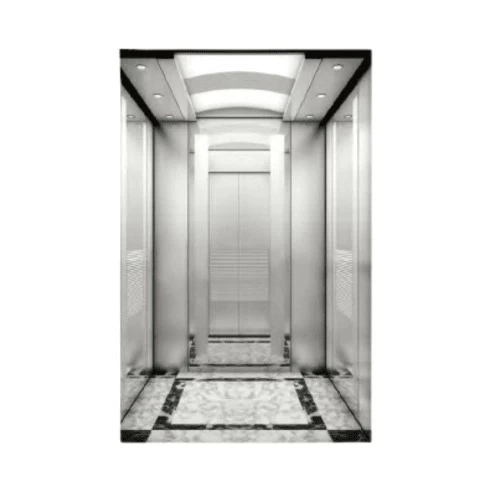

A machine roomless passenger elevator designed with clean efficiency and simplicity in mind. It features etched mirror walls with a sleek linear finish and a stainless steel ceiling with a central arch that softly illuminates both sides, creating a calm interior environment. The cabin is built without handrails for a more open feel, and the floor is finished in practical, water-resistant PVC. The elevator operates without a machine room, with its motor and control system installed within the shaft to save space and enhance architectural freedom. This energy-efficient system is ideal for modern buildings that value compact design and environmental sustainability.
- Ceiling material: Stainless steel
- Wall material: Etched mirror with hairline finish
- Floor material: PVC
- Color: Silver
- Load capacity: 630 KG
- Number of passengers: 8 persons
- Speed: 1 m/s
- Car dimensions: 1400 × 1100 mm
- Door opening dimensions: 800 × 2100 mm
- Shaft dimensions: 2300 × 1700 mm
- Pit depth: 1600 mm
- Top floor height: 4300 mm
- Motor power: 4.3 kW
- Reaction force R1: 19800 N
- Reaction force R2: 26400 N
- Load force P1: 58000 N
- Load force P2: 45600 N
- Brand: FUJI
- Design code: JG-K02
- Model: TKJW630/1
