Machine Roomless Passenger Elevator, Printed Safety Glass Walls, Mirror-Framed Ceiling, PVC Flooring, Slim Stainless Rail, 15 Persons, 1150 KG Load, 1.5 m/s Speed
(464 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Machine Roomless Passenger Elevator, Printed Safety Glass Walls, Mirror-Framed Ceiling, PVC Flooring, Slim Stainless Rail, 15 Persons, 1150 KG Load, 1.5 m/s Speed, MRL technology simplifying the installation process and reducing maintenance costs, in addition to saving a valuable space in the top of the building.
Product description

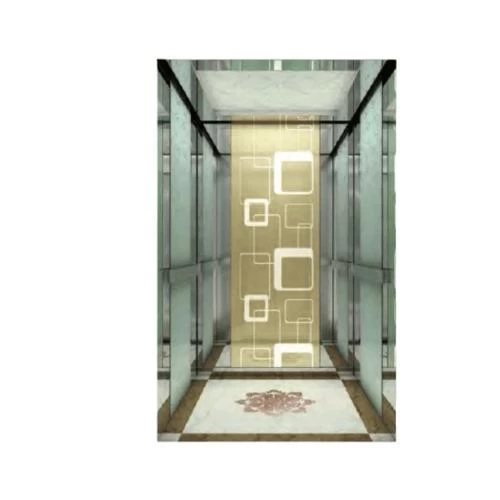

Machine roomless passenger elevator features a modern look with printed safety glass walls and a stainless mirror-framed ceiling, combined with an acrylic light-emitting panel for balanced illumination. It includes a flat stainless steel handrail for comfort and support. The PVC flooring offers durability and ease of maintenance, ideal for high-traffic residential or commercial settings. As an MRL system, it operates without a machine room, optimizing space and improving energy efficiency. Available in various designs and specifications to suit all projects.
- Ceiling material: Mirror stainless steel frame with acrylic light-emitting panel
- Wall material: Printed safety glass with stainless steel
- Handrail material: Flat stainless steel handrail
- Floor material: PVC
- Color: Silver
- Load capacity: 1150 KG
- Number of passengers: 15 persons
- Speed: 1.5 m/s
- Car dimensions: 1600x1400 mm
- Door opening dimensions: 900x2100 mm
- Shaft dimensions: 2500x2000 mm
- Pit depth: 1700 mm
- Top floor height: 4400 mm
- Motor power: 11.7 kW
- Reaction force R1: 30400 N
- Reaction force R2: 43600 N
- Load force P1: 92000 N
- Load force P2: 75000 N
- Brand: FUJI
- Design code: JG-K17
- Model: TKW1150/1.5
