Machine Roomless Passenger Elevator, Black Titanium Design, Etched Walls, Acrylic-Lit Ceiling, Vinyl Coated Flooring, No Handrail, 13 Persons, 1000 KG Load, 1 m/s Speed

Product description

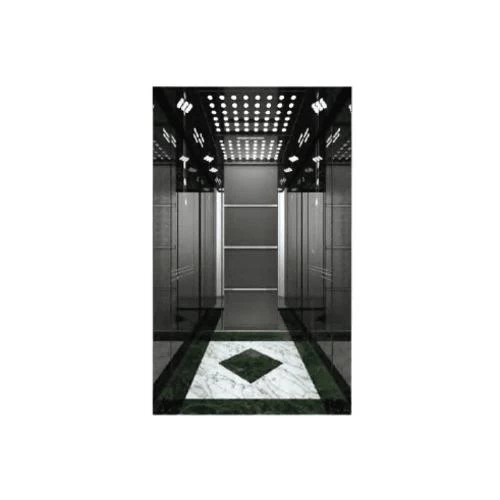

Machine roomless passenger elevator features a luxurious black titanium design with etched stainless steel mirror panels on both sides, and a soft decorative centerpiece on the back wall. The ceiling includes acrylic lighting that evenly illuminates the cabin, while the floor is made of durable PVC, making it suitable for residential and hospitality buildings. Operating without a machine room, this MRL system maximizes space, enhances energy efficiency, and elevates modern architectural flexibility. Available in various designs and specifications to suit all projects.

• Ceiling material:  stainless steel frame
• Wall material: Black titanium mirror etched stainless steel with soft padded back panel
• Handrail material: None
• Floor material: PVC
• Color: Black
• Load capacity: 1000 KG
• Number of passengers: 13 persons
• Speed: 1.0 m/s
• Car dimensions: 1600x1400 mm
• Door opening dimensions: 900x2100 mm
• Shaft dimensions: 2500x2000 mm
• Pit depth: 1600 mm
• Top floor height: 4300 mm
• Motor power: 6.7 kW
• Reaction force R1: 27400 N
• Reaction force R2: 39600 N
• Load force P1: 88000 N
• Load force P2: 68000 N
• Brand: FUJI
• Design code: JG-K18
• Model: TKW1000/1.0
