Machine Roomless Passenger Elevator, Arched Stainless Steel Ceiling, Etched Mirror Wall, PVC Floor, 6-Person Capacity, 450 KG Load, 1.5 m/s Speed
(548 Product Views)
Machine Roomless Passenger Elevator, Arched Stainless Steel Ceiling, Etched Mirror Wall, PVC Floor, 6-Person Capacity, 450 KG Load, 1.5 m/s Speed practical design that combines sleek aesthetics and high performance . It features an arched stainless steel ceiling with soft lighting on both sides
Product description

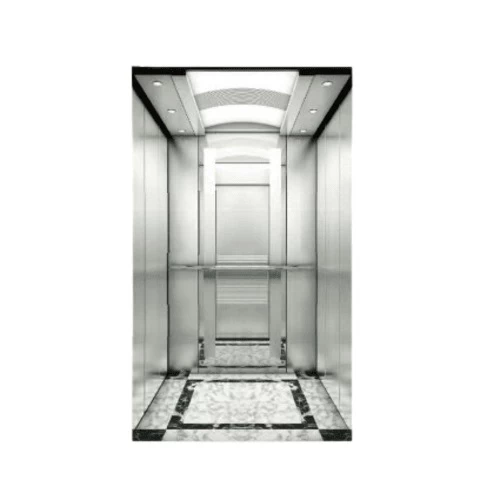

A machine roomless passenger elevator with a modern and practical design that combines high performance and sleek aesthetics. It features an arched stainless steel ceiling with soft lighting on both sides, etched mirror walls with linear finishing, a stainless steel tube handrail, and a durable PVC floor. The elevator does not require a traditional machine room, as its motor and control unit are integrated within the shaft or on top of the car, saving a full floor of space. This design is ideal for narrow or modern buildings, offering greater architectural flexibility and high energy efficiency with eco-conscious operation.
- Ceiling material: Stainless steel
- Wall material: Etched mirror with hairline finish
- Handrail material: Stainless steel tube
- Floor material: PVC
- Color: Silver
- Load capacity: 450 KG
- Number of passengers: 6 persons
- Speed: 1.5 m/s
- Car dimensions: 1100 × 1100 mm
- Door opening dimensions: 700 × 2100 mm
- Shaft dimensions: 2000 × 1700 mm
- Pit depth: 1700 mm
- Top floor height: 4400 mm
- Motor power: 4.9 kW
- Reaction force R1: 16500 N
- Reaction force R2: 21000 N
- Load force P1: 44000 N
- Load force P2: 35000 N
- Brand: FUJI
- Design code: JG-K01
- Model: TKJW450/1.5
