Machine Room-less Passenger Elevator (Compact), 630 KG Load, 8 Persons Capacity, 1.0 m/s Speed, Etched Mirror Wall with PVC Flooring
(276 Product Views)
Machine Room-less Passenger Elevator (Compact), 630 KG Load, 8 Persons Capacity, 1.0 m/s Speed, Etched Mirror Wall with PVC Flooring, characterized by its innovative design that takes into account the limited space.
Product description

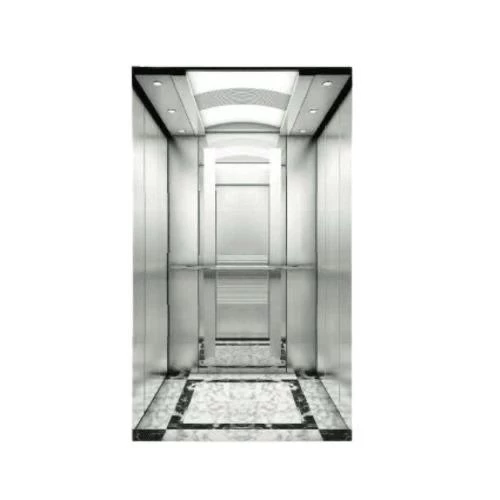

A machine room-less elevator designed for buildings with limited space. It saves energy and gives more freedom in architectural design. It features elegant etched mirror walls, a central arch ceiling with soft side lighting, stainless steel tube handrail, and a practical PVC floor. This elevator combines function with clean aesthetics, making it ideal for modern buildings. Available in various designs to suit all needs.
- Ceiling material: Central arch stainless steel with soft lighting
- Wall material: Etched mirror with hairline finish
- Handrail material: Stainless steel tube
- Floor material: PVC
- Color: Silver
- Load capacity: 630 KG
- Number of passengers: 8 persons
- Speed: 1.0 m/s
- Car dimensions: 1200x1350 mm
- Door opening dimensions: 700x2100 mm
- Shaft dimensions: 1850x1750 mm
- Pit depth: 1500 mm
- Top floor height: 4600 mm
- Motor power: 4 kW
- Reaction force R1: 19800 N
- Reaction force R2: 26400 N
- Load force P1: 58000 N
- Load force P2: 45600 N
- Brand: FUJI
- Design code: JG-K01
- Model: TKJW630/1.0
