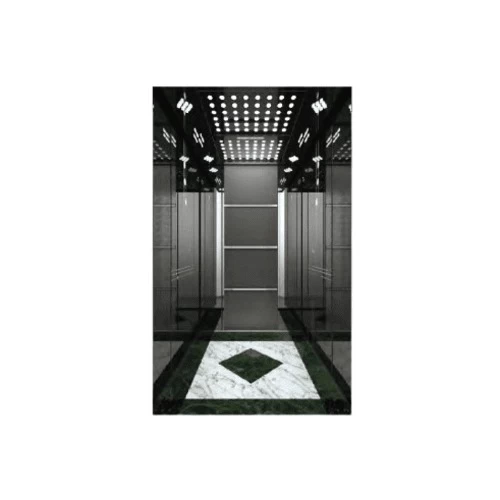

Guest Lift with Small Machine Room, Etched Black Titanium Mirror Walls, Acrylic-Lit Ceiling with Titanium Frame, PVC Floor, 450 KG Load, 6 Persons, 1.5 m/s Speed
(1012 Product Views)
Guest Lift with Small Machine Room, Etched Black Titanium Mirror Walls, Acrylic-Lit Ceiling with Titanium Frame, PVC Floor, 450 KG Load, 6 Persons, 1.5 m/s Speed, the combination of high -quality materials and elegant design makes it an exceptional option.
Product description
Passenger elevator with a small machine room, featuring a warm and classic interior design, suitable for upscale residential or hotel buildings. The ceiling includes a white organic panel with a mirror frame that provides balanced lighting and a calm atmosphere. The walls are finished with veneer or imitation veneer and include a central mirror for both function and elegance. The handrail is made from a combination of round wood and titanium gold, offering both style and support. The floor is made of durable, easy-to-clean PVC, ideal for frequent use. The elevator is equipped with all standard safety features such as door sensors, alarm system, emergency lighting, and automatic safety brakes. Available in multiple designs to match various project needs.
- Ceiling material: Veneer or imitation veneer with mirror frame
- Wall material: Veneer or imitation veneer surface with central make-up mirror
- Handrail material: Round wood and titanium gold combination
- Floor material: PVC
- Color: Wood finish
- Load capacity: 450 KG
- Number of passengers: 6 persons
- Speed: 1.5 m/s
- Car dimensions: 1100 × 1100 mm
- Door opening dimensions: 700 × 2100 mm
- Shaft dimensions: 1700 × 1700 mm
- Machine room dimensions: 1700 × 1700 mm
- Pit depth: 1400 mm
- Top floor height: 4500 mm
- Motor power: 4.9 kW
- Reaction force R1: 28800 N
- Reaction force R2: 17200 N
- Reaction force R3: 1900 N
- Load force P1: 44000 N
- Load force P2: 35000 N
- Brand: FUJI
- Design code: JG-K18
- Model: TKJ450/1.5
