Gearless Overhead Elevator, Curved Metal Top, Etched Mirror Wall, PVC Floor, 18-Person Capacity, 1350 KG Load, 1 m/s Speed
(508 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Gearless Overhead Elevator, Curved Metal Top, Etched Mirror Wall, PVC Floor, 18-Person Capacity, 1350 KG Load, 1 m/s This design is ideal for modern or narrow buildings, offering greater architectural flexibility and high energy efficiency with eco-conscious operation. that combines sleek aesthetics and high performance.
Product description

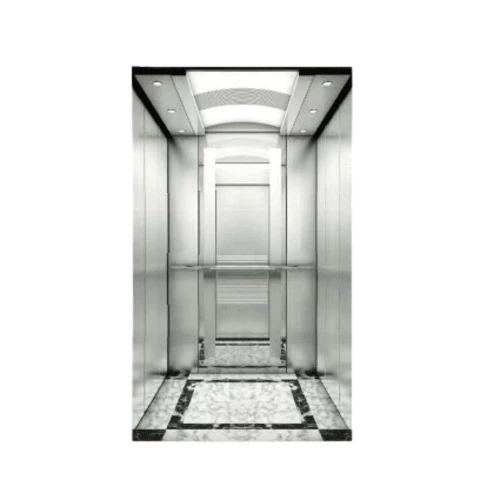

A machine roomless passenger elevator with a modern and practical design that combines high performance and sleek aesthetics. It features an arched stainless steel ceiling with soft lighting on both sides, etched mirror walls with linear finishing, a stainless steel tube handrail, and a durable PVC floor. The elevator does not require a traditional machine room, as its motor and control unit are integrated within the shaft or on top of the car, saving a full floor of space. This design is ideal for narrow or modern buildings, offering greater architectural flexibility and high energy efficiency with eco-conscious operation.
- Ceiling material: Stainless steel
- Wall material: Etched mirror with hairline finish
- Handrail material: Stainless steel tube
- Floor material: PVC
- Color: Silver
- Load capacity: 1350 KG
- Number of passengers: 18 persons
- Speed: 1 m/s
- Car dimensions: 1900 × 1600 mm
- Door opening dimensions: 1100 × 2100 mm
- Shaft dimensions:2900 × 2400 mm
- Pit depth: 1600 mm
- Top floor height: 4400 mm
- Motor power: 9.2 kW
- Reaction force R1: 37600 N
- Reaction force R2: 46400 N
- Load force P1:114000 N
- Load force P2: 87000 N
- Brand: FUJI
- Design code: JG-K01
- Model: TKJW1350/1
