Compact System Passenger Elevator, Etched Mirror Walls, PVC Floor, Soft-Lit Stainless Steel Ceiling, 18-Person Capacity, 1350 KG Load, 1 m/s Speed
(460 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Compact System Passenger Elevator, Etched Mirror Walls, PVC Floor, Soft-Lit Stainless Steel Ceiling, 18-Person Capacity, 1350 KG Load, 1 m/s The cabin is built without handrails for a more open feel, and the floor is finished in practical, water-resistant PVC.
Product description

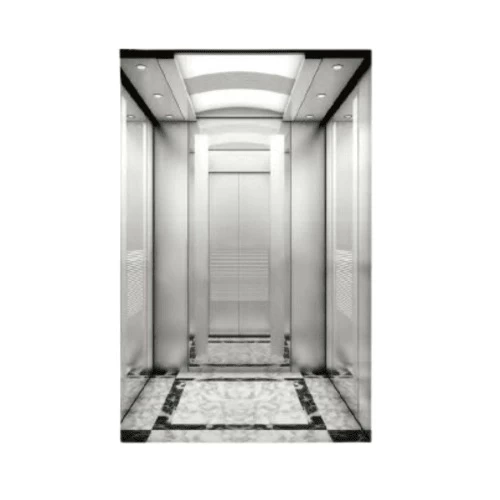

A machine roomless passenger elevator designed with clean efficiency and simplicity in mind. It features etched mirror walls with a sleek linear finish and a stainless steel ceiling with a central arch that softly illuminates both sides, creating a calm interior environment. The cabin is built without handrails for a more open feel, and the floor is finished in practical, water-resistant PVC. The elevator operates without a machine room, with its motor and control system installed within the shaft to save space and enhance architectural freedom. This energy-efficient system is ideal for modern buildings that value compact design and environmental sustainability.
- Ceiling material: Stainless steel
- Wall material: Etched mirror with hairline finish
- Floor material: PVC
- Color: Silver
- Load capacity: 1350 KG
- Number of passengers: 18 persons
- Speed: 1 m/s
- Car dimensions: 1900 × 1500 mm
- Door opening dimensions: 1100 × 2100 mm
- Shaft dimensions: 2900 × 2000 mm
- Pit depth: 1600 mm
- Top floor height: 4400 mm
- Motor power:9.2 kW
- Reaction force R1: 37600 N
- Reaction force R2: 46400 N
- Load force P1: 114000 N
- Load force P2: 87000 N
- Brand: FUJI
- Design code: JG-K02
- Model: TKJW1350/1
