Compact System Passenger Elevator, Etched Mirror Walls, PVC Floor, Soft-Lit Stainless Steel Ceiling, 15-Person Capacity, 1150 KG Load, 1.5 m/s Speed
(408 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Compact System Passenger Elevator, Etched Mirror Walls, PVC Floor, Soft-Lit Stainless Steel Ceiling, 15-Person Capacity, 1150 KG Load, 1.5 m/s Speed This energy-efficient system is ideal for modern buildings that environmental sustainability and value compact design, with its motor and control system installed within the shaft to save space and enhance architectural freedom
Product description

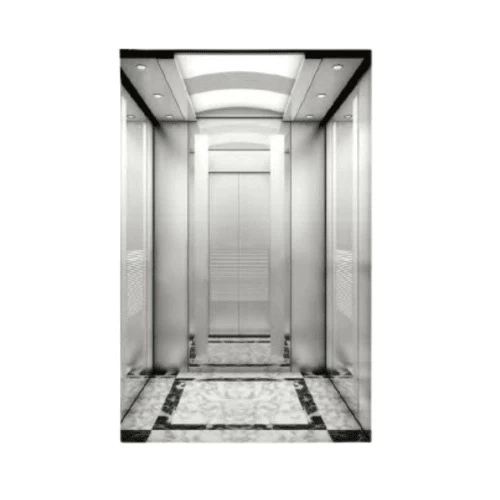

A machine roomless passenger elevator designed with clean efficiency and simplicity in mind. It features etched mirror walls with a sleek linear finish and a stainless steel ceiling with a central arch that softly illuminates both sides, creating a calm interior environment. The cabin is built without handrails for a more open feel, and the floor is finished in practical, water-resistant PVC. The elevator operates without a machine room, with its motor and control system installed within the shaft to save space and enhance architectural freedom. This energy-efficient system is ideal for modern buildings that value compact design and environmental sustainability.
- Ceiling material: Stainless steel
- Wall material: Etched mirror with hairline finish
- Floor material: PVC
- Color: Silver
- Load capacity: 1150 KG
- Number of passengers: 15 persons
- Speed: 1.5 m/s
- Car dimensions: 1900 × 1400 mm
- Door opening dimensions: 1000 × 2100 mm
- Shaft dimensions: 2800 × 2000 mm
- Pit depth: 1700 mm
- Top floor height: 4400 mm
- Motor power:11.7 kW
- Reaction force R1: 30400 N
- Reaction force R2: 43600 N
- Load force P1: 92000 N
- Load force P2: 75000 N
- Brand: FUJI
- Design code: JG-K02
- Model: TKJW1150/1.5
