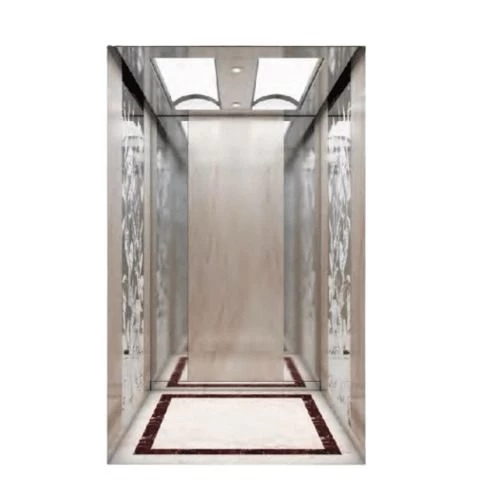

Compact Lift, Glossy Marble Finish, Mirror Walls, Acrylic Ceiling Light, PVC Floor, 8 Persons, 630 KG Load, 1 m/s Speed
(442 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Compact Lift, Glossy Marble Finish, Mirror Walls, Acrylic Ceiling Light, PVC Floor, 8 Persons, 630 KG Load, 1 m/s Speed, features accurate inscriptions on marble walls that increase its aesthetic.
Product description
machine roomless passenger elevator features a luxurious design with etched mirror stainless steel walls and elegant marble-like textures, offering a sense of spaciousness and reflection. The ceiling includes a soft acrylic light-emitting panel that distributes gentle light throughout the cabin. The PVC flooring ensures durability and easy maintenance, ideal for daily use. The design includes no handrail, enhancing the clean, open feel of the space. As an MRL model, it operates without a separate machine room, integrating motor and control components within the shaft, resulting in energy efficiency and optimal use of architectural space. Suitable for residential or commercial buildings. Available in various designs and specifications to suit all projects.
- Ceiling material: Hairline stainless steel frame with acrylic light-emitting panel
- Wall material: Marble or imitation marble with etched mirror
- Handrail material: None
- Floor material: PVC
- Color: Silver
- Load capacity: 630 KG
- Number of passengers: 8 persons
- Speed: 1.0 m/s
- Car dimensions: 1400x1100 mm
- Door opening dimensions: 800x2100 mm
- Shaft dimensions: 2300x1700 mm
- Pit depth: 1600 mm
- Top floor height: 4300 mm
- Motor power: 4.3 kW
- Reaction force R1: 19800 N
- Reaction force R2: 26400 N
- Load force P1: 58000 N
- Load force P2: 45600 N
- Brand: FUJI
- Design code: JG-K14
- Model: TKW630/1.0
