Compact Lift, Black Titanium Design, Etched Walls, Acrylic-Lit Ceiling, PVC Floor, No Handrail, 10 Persons, 800 KG Load, 1.5 m/s Speed
(485 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Compact Lift, Black Titanium Design, Etched Walls, Acrylic-Lit Ceiling, PVC Floor, No Handrail, 10 Persons, 800 KG Load, 1.5 m/s Speed, available in various and comprehensive designs and specifications, which makes it able to meet the needs and requirements of all types of different architectural projects, whether residential, commercial or hotel.
Product description

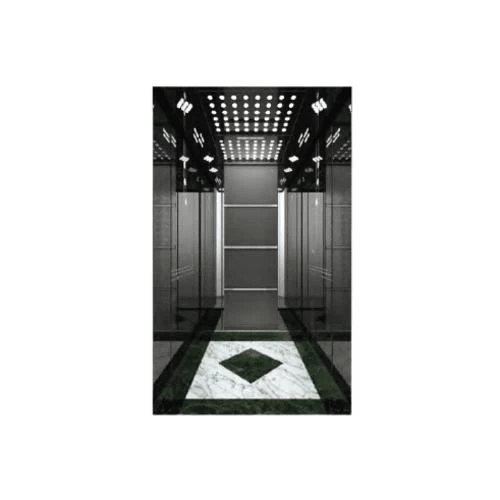

Machine roomless passenger elevator features a luxurious black titanium design with etched stainless steel mirror panels on both sides, and a soft decorative centerpiece on the back wall. The ceiling includes acrylic lighting that evenly illuminates the cabin, while the floor is made of durable PVC, making it suitable for residential and hospitality buildings. Operating without a machine room, this MRL system maximizes space, enhances energy efficiency, and elevates modern architectural flexibility. Available in various designs and specifications to suit all projects.
- Ceiling material: stainless steel frame
- Wall material: Black titanium mirror etched stainless steel with soft padded back panel
- Handrail material: None
- Floor material: PVC
- Color: Black
- Load capacity: 800 KG
- Number of passengers: 10 persons
- Speed: 1.5 m/s
- Car dimensions: 1400x1350 mm
- Door opening dimensions: 800x2100 mm
- Shaft dimensions: 2300x2000 mm
- Pit depth: 1700 mm
- Top floor height: 4400 mm
- Motor power: 8.1 kW
- Reaction force R1: 25700 N
- Reaction force R2: 27100 N
- Load force P1: 72800 N
- Load force P2: 56000 N
- Brand: FUJI
- Design code: JG-K18
- Model: TKW800/1.5
