Building Elevator equipped with a Small Machine Room, Mirror Wall, Synthetic Floor, 630 KG Capacity, holds 8 Persons, 1.5 m/s Speed
(457 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Building an elevator with a small machine room, elegant metal cladding, an insulated wooden floor, an 8-passenger capacity, 630 KG load capacity, 1.5 m/s speed, practical design for high-traffic areas, equipped with a smart ventilation system for improved elevator environment.
Product description

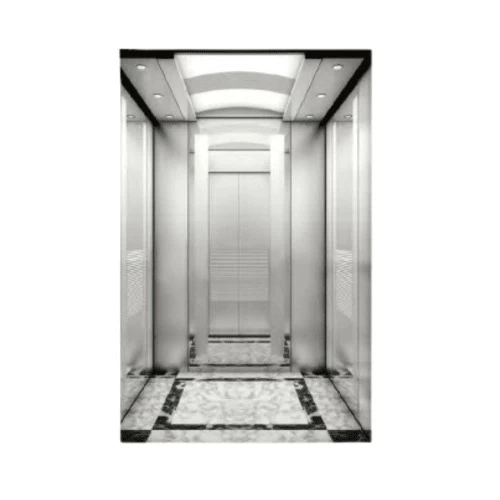

Passenger elevator with a small machine room, made from high-quality materials with a clean and elegant design. The ceiling has a central stainless steel arch with soft lighting on both sides, giving a calm and open look. The cabin walls are made of etched mirror panels with a fine finish, adding style and brightness. The floor is PVC, strong and easy to clean. This model has no handrail, making the space feel more open and simple. Perfect for residential or office buildings that want a modern and minimal look. Available in different designs and specs to suit all needs.
- Ceiling material: Stainless steel
- Wall material: Mirror with hairline finish
- Handrail material: Stainless steel tube
- Floor material: PVC
- Color: Silver
- Load capacity: 630 KG
- Number of passengers: 8 persons
- Speed: 1.5 m/s
- Car dimensions: 1400 × 1100 mm
- Door opening dimensions: 800 × 2100 mm
- Shaft dimensions: 2000 × 1700 mm
- Machine room dimensions: 2000 × 1700 mm
- Pit depth: 1500 mm
- Top floor height: 4600 mm
- Motor power: 6.4 kW
- Reaction force R1: 35200 N
- Reaction force R2: 21800 N
- Reaction force R3: 4300 N
- Load force P1: 58000 N
- Load force P2: 45600 N
- Brand: FUJI
- Design code: JG-K02
- Model: TKJ630/1.5
