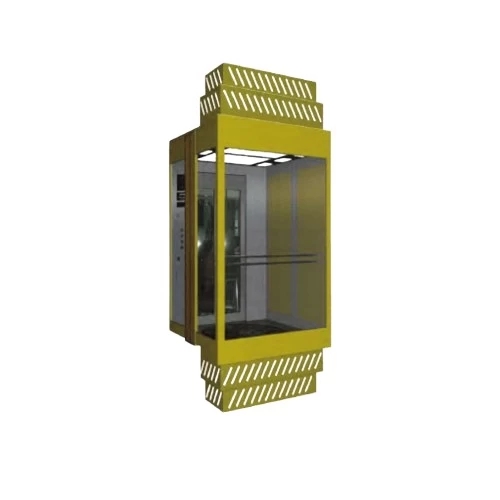

Square panoramic elevator, 1150 KG load, 1.0 m/s speed,15 persons, glass design, matte yellow finish

Product description

Square panoramic elevator featuring a bold matte yellow exterior that combines elegance with full visibility. The lift is equipped with 6+6 mm laminated safety glass (3PCS), providing a wide-angle panoramic view ideal for hotels, malls, and public spaces. The enamel-coated ceiling integrates acrylic lighting, delivering a sleek and contemporary visual impact. Interior walls are crafted from brushed stainless steel, and a double tube handrail adds both comfort and safety. Available in a variety of finishes and custom colors upon request.

• Car cover material: Baked enamel steel with lighting decoration
• Observation wall: 6+6 laminated safety glass (3PCS)
• Ceiling material: Baked enamel steel with acrylic lighting
• Interior wall: Brushed stainless steel
• Handrail material: Double tube stainless steel
• Floor material: PVC
• Color: Matte yellow
• Load capacity: 1150 KG
• Number of passengers: 15 persons
• Speed: 1 m/s
• Car dimensions: 1900 × 1400 mm
• Door opening dimensions: 1000 × 2100 mm
• Shaft dimensions: 2800 × 2000 mm
• Pit depth: 1600 mm
• Top floor height: 4600 mm
• Power: 7.8 kW
• Reaction force R1: 30400 N
• Reaction force R2: 43600 N
• Load force P1: 92000 N
• Load force P2: 75000 N
• Brand: FUJI
• Design code: JG-G08
• Model: TGJW1150/1
