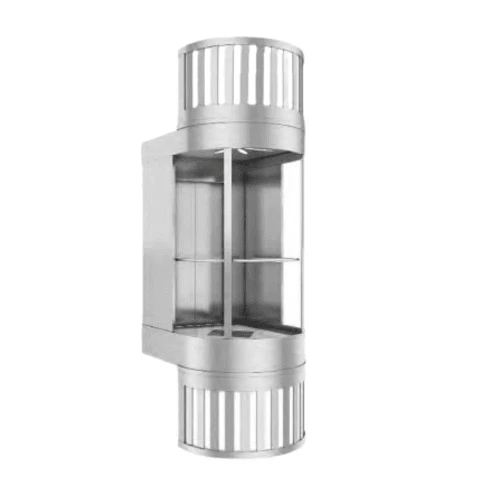

Round panoramic elevator, machine roomless, 1.5 m/s speed, 10 passengers, 800 KG load, curved glass walls
(458 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Round panoramic elevator, machine roomless, 1.5 m/s speed, 10 passengers, 800 KG load, curved glass walls, characterized by a variety of interior finishes options to suit different tastes.
Product description
A round machine roomless panoramic elevator with curved glass walls for a wide viewing experience. Perfect for hotels, shopping malls, and modern buildings requiring elegant and space-efficient vertical transport. The ceiling includes integrated acrylic lighting for aesthetic enhancement, while the stainless steel frame offers strength and sleekness. A smart solution for high-traffic stylish environments.
- Car cover material: Enamel-coated steel with acrylic strip lighting
- Observation wall material: 6+6 mm laminated safety glass (3PCS)
- Ceiling material: Baked enamel steel frame with acrylic lighting
- Car wall material: Hairline stainless steel
- Handrail material: Stainless steel tube
- Floor material: PVC
- Color: Glossy silver with transparent faรงade
- Load capacity: 800 KG
- Passenger capacity: 10 persons
- Speed: 1.5 m/s
- Car dimensions: 1200x1800 mm
- Door opening size: 800x2100 mm
- Shaft dimensions: 2600 ร (1300 - 2400) mm
- Pit depth: 1900 mm
- Top floor height: 4700 mm
- Motor power: 8.1 kW
- Reaction force R1: 25200 N
- Reaction force R2: 35200 N
- Load force P1: 80000 N
- Load force P2: 64000 N
- Brand: FUJI
- Design code: JG-G02
- Model: TGJW800/1.5
