Curved Panoramic elevator, 1000 KG, 13 passenger, 1.5 m/s speed, steel casing with cylindrical acrylic lighting
(478 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
Curved Panoramic elevator, 1000 KG, 13 passenger, 1.5 m/s speed, steel casing with cylindrical acrylic lighting, he exterior features pressed steel plates with baked enamel finish and modern acrylic lighting decoration.
in stock
Product description

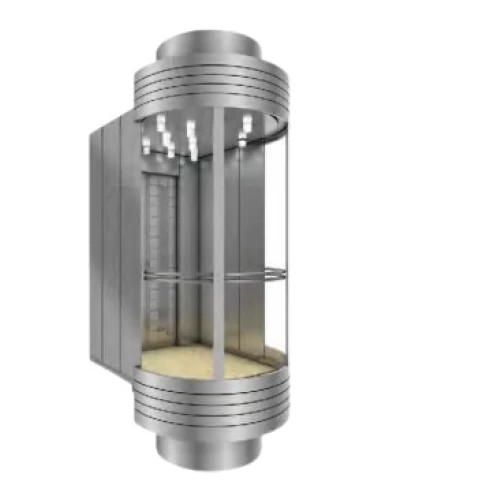

A circular panoramic elevator offering a clear and stylish view through 6+6 round laminated safety glass walls (3PCS). The exterior features pressed steel plates with baked enamel finish and modern acrylic lighting decoration. The ceiling incorporates a cylindrical acrylic crystal lamp for an elegant ambiance. Suitable for hotels, malls, and architecturally bold public spaces. Customizable in colors and finishes.
- Ceiling material: Baked enamel steel with cylindrical acrylic crystal lamp
- Wall material: Round 6+6 laminated safety glass (3PCS)
- Handrail material: Double stainless steel tube
- Floor material: PVC
- Color: Glossy silver with lighting accents
- Load capacity: 1000 KG
- Number of passengers: 13 persons
- Speed: 1.5 m/s
- Car dimensions: 1300 ร 1900 mm
- Door opening dimensions: 900 ร 2100 mm
- Shaft dimensions: 2700 ร 1350-2500 mm
- Pit depth: 1900 mm
- Top floor height: 4700 mm
- Motor power: 10 kW
- Reaction force R1: 29200 N
- Reaction force R2: 42800 N
- Load force P1: 96000 N
- Load force P2: 76000 N
- Brand: FUJI
- Design code: JG-G05
- Model: TGJW1000/1.5
