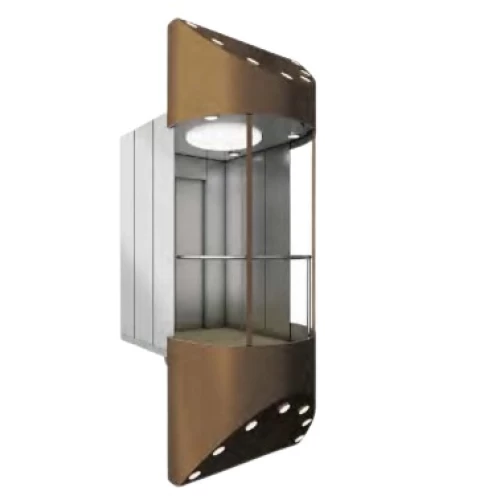

Circular Observation lift, 450 KG load, 1.5 m/s speed, 6 passenger capacity, steel design with integrated lamp

Product description

A circular panoramic elevator offering a unique sightseeing experience through its 6+6 laminated safety glass walls (3PCS). The car cover features a slanted baked enamel steel plate with an integrated down lamp, delivering a bold architectural statement. Inside, the ceiling is framed with decorative steel and soft acrylic lighting for a modern look. Ideal for malls, hotels, and public buildings aiming to impress. Available in customized finishes.

• Ceiling material: Decorative stainless steel frame with acrylic light-emitting panel and down lamp
• Wall material: Round 6+6 laminated safety glass (3PCS)
• Handrail material: Stainless steel tube
• Floor material: PVC
• Color: Silver with copper accents
• Load capacity: 450 KG
• Number of passengers: 6 persons
• Speed: 1.5 m/s
• Car dimensions: 1000 × 1400 mm
• Door opening dimensions: 700 × 2100 mm
• Shaft dimensions: 2400 × 1050-2000 mm
• Pit depth: 1900 mm
• Top floor height: 4700 mm
• Motor power: 4.9 kW
• Reaction force R1: 17600 N
• Reaction force R2: 22400 N
• Load force P1: 52000 N
• Load force P2: 41000 N
• Brand: FUJI
• Design code: JG-G04
• Model: TGJW450/1.5
