People Lift, 800 KG Capacity, 3 m/s Travel Speed, 10 Person Capacity, Elegant Mirror Wall and PVC Surface

Product description

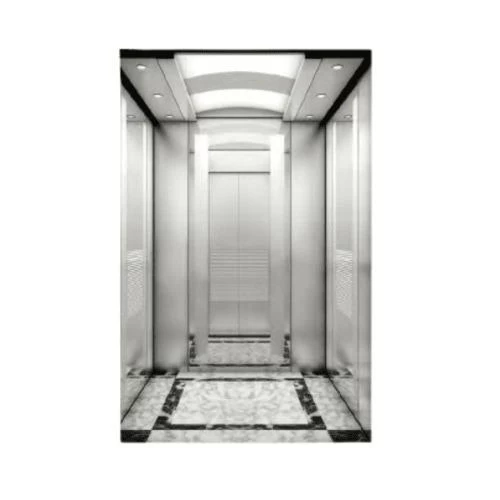

A high-speed elevator equipped with a smart 32-bit networked control system, enhancing processing speed and ensuring instant data transmission through CAN bus communication. The elevator features an upgraded shock-absorbing device that isolates vibrations between the cabin and frame, improving passenger comfort and reducing operational noise. It boasts a modern interior design with a central ceiling arch featuring stainless steel panels, soft side lighting, etched mirror walls with a hairline finish, and a durable PVC floor, creating a sophisticated blend of functionality and elegance. Ideal for residential and luxury office buildings with multiple design choices to fit all tastes.

• Ceiling material: Stainless steel with central image arch
• Wall material: Etched mirror with hairline finish
• Handrail material: None
• Floor material: PVC
• Color: Silver
• Load capacity: 800 KG
• Number of passengers: 10 persons
• Speed: 3 m/s
• Car dimensions: 1400 × 1350 mm
• Door opening dimensions: 800 × 2100 mm
• Shaft dimensions: 2100 × 2050 mm
• Machine room dimensions: 2100 × 2050 mm
• Pit depth: 3200 mm
• Top floor height: 5700 mm
• Motor power: 16.5 kW
• Reaction force R1: 44800 N
• Reaction force R2: 27400 N
• Reaction force R3: 5400 N
• Load force P1: 72000 N
• Load force P2: 56000 N
• Brand: FUJI
• Design code: JG-K02
• Model: TKJ800/3
