High-Speed Indoor Elevator, 800 KG Load, 10 Persons Capacity, 2.5 m/s Speed, Marble and Etched Titanium Mirror Wall with PVC Flooring
(529 Product Views)
-size_height_45.webp "YouMats"){kind=logo}
High-Speed Indoor Elevator, 800 KG Load, 10 Persons Capacity, 2.5 m/s Speed, Marble and Etched Titanium Mirror Wall with PVC Flooring, It features a 32-bit connection network that allows an immediate response to orders, with modern can Bus technology that enhances performance and stability.
Product description

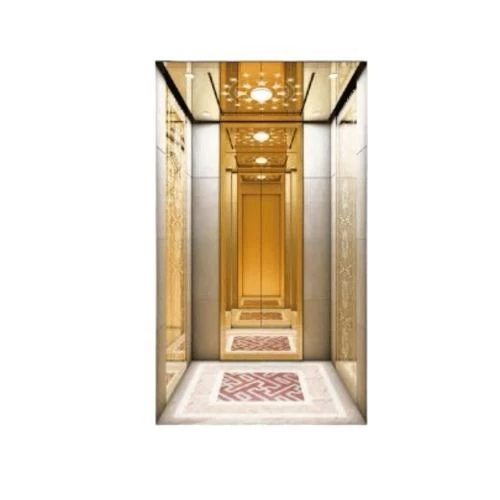

A high-speed elevator featuring a smart 32-bit networked control system, delivering instant response and stable performance through advanced CAN bus technology. The elevator includes an advanced shock-absorbing system to isolate vibrations, ensuring a smooth and comfortable ride. Its luxurious interior combines marble or imitation marble walls with titanium-plated etched stainless steel mirrors, topped with a ceiling of etched titanium gold mirror featuring a central light and LED lights at all four sides. The PVC flooring adds practicality, making this elevator an ideal choice for luxury hotels and upscale residential buildings.
- Ceiling material: Etched titanium gold mirror with central ceiling lamp and LED at four sides
- Wall material: Marble or imitation marble grain, titanium-plated etched stainless steel mirror
- Handrail material: None
- Floor material: PVC
- Color: Gold and Marble
- Load capacity: 800 KG
- Number of passengers: 10 persons
- Speed: 2.5 m/s
- Car dimensions: 1400x1350 mm
- Door opening dimensions: 800x2100 mm
- Shaft dimensions: 2000x2050 mm
- Machine room dimensions: 2000x2050 mm
- Pit depth: 1700 mm
- Top floor height: 5000 mm
- Motor power: 10.9 kW
- Reaction force R1: 44800 N
- Reaction force R2: 27400 N
- Reaction force R3: 5400 N
- Load force P1: 72000 N
- Load force P2: 56000 N
- Brand: FUJI
- Design code: JG-K05
- Model: TKJ800/2.5
