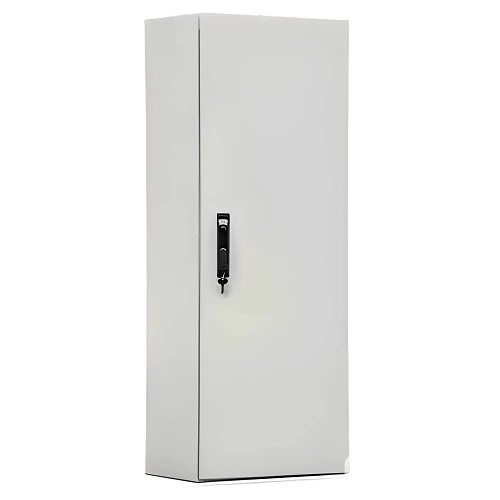

Single door metal enclosure zinc plated steel, 3 points lock, dimensions 1800x800 mm, depth 300 mm, from al fanar factory, model 47-(SBX3188030D), It is equipped with organized channels and paths to extend wires and cables in an organized and safe manner.
Product description
Metal Electrical Enclosure manufactured by Al Fanar Company, made from high-quality electro-galvanized (EG) steel sheets to ensure durability and longevity. It is coated with a weather-resistant insulating layer, gasket on door ensures better sealing, grounding bolts are provided on both the enclosure and the door, features easily removable hinges, ideal for changing the door opening direction, along with metal keys and a robust locking mechanism, used for the protection and storage of electrical systems, suitable for industrial and commercial applications that require high security, available in a variety of sizes, offering the highest quality at the best prices.
- Height: 1800 mm
- Width: 800 mm
- Depth: 300 mm
- Enclosure thickness: 1.5 mm
- Mounting plate thickness: 2 mm
- Number of cable plates Bottom: 2
- Number of doors: Single door
- Protection rating: IP66
- Type: SBX
- Lock type: 3-Points Lock Handle
- Code: 47-(SBX3188030D)
- Manufactured according to: IEC 60529/62208
