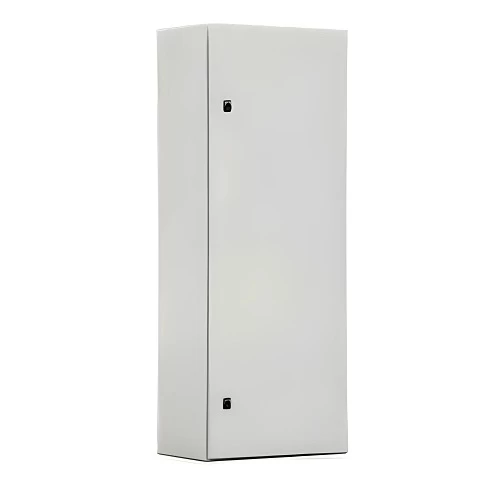

Single Door Metal Electrical Enclosure, Tow Cam Locks, Dimensions 1600x600 mm, Depth 350 mm, Thickness 1.5 mm | Al Fanar Factory

Metal Electrical Enclosure manufactured by Al Fanar Company, made from high-quality electro-galvanized (EG) steel sheets to ensure durability and longevity. It is coated with a weather-resistant insulating layer, gasket on door ensures better sealing, grounding bolts are provided on both the enclosure and the door, features easily removable hinges, ideal for changing the door opening direction, along with metal keys and a robust locking mechanism, used for the protection and storage of electrical systems, suitable for industrial and commercial applications that require high security, available in a variety of sizes, offering the highest quality at the best prices.

• Height: 1600 mm
• Width: 600 mm
• Depth: 350 mm
• Enclosure Thickness: 1.5 mm
• Mounting Plate Thickness: 2 mm
• Number of Gland Plates: 1
• Number of Doors: Single Door
• Protection Rating: IP66
• Type: SBX
• Number of Locks: 2 Cam
• Code: 47-SBX166035D
• Manufactured according to: IEC 60529/62208
