Single Door Metal Electrical Enclosure, 3 Points Lock, Dimensions 1400x600 mm, Depth 150 mm, Thickness 1.5 mm | Al Fanar
(551 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

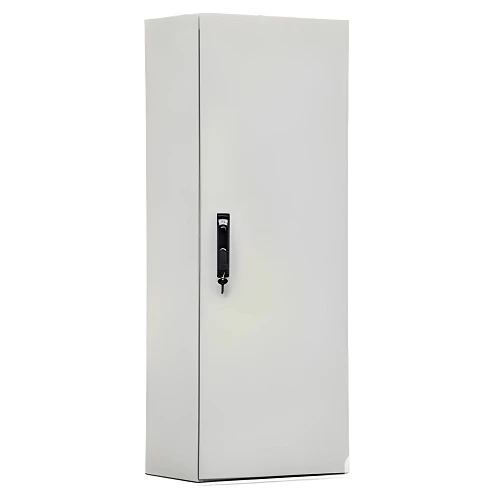

Single door metal electrical enclosure, 3 points lock, dimensions 1400x600 mm, depth 150 mm, thickness 1.5 mm, from al fanar, model 47-(SBX3146015D), It is resistant to chemicals and oils, making it ideal for factories and laboratories.
Product description
Metal Electrical Enclosure manufactured by Al Fanar Company, made from high-quality electro-galvanized (EG) steel sheets to ensure durability and longevity. It is coated with a weather-resistant insulating layer, gasket on door ensures better sealing, grounding bolts are provided on both the enclosure and the door, features easily removable hinges, ideal for changing the door opening direction, along with metal keys and a robust locking mechanism, used for the protection and storage of electrical systems, suitable for industrial and commercial applications that require high security, available in a variety of sizes, offering the highest quality at the best prices.
- Height: 1400 mm
- Width: 600 mm
- Depth: 150 mm
- Enclosure thickness: 1.5 mm
- Mounting plate thickness: 2 mm
- Number of cable plates Bottom: 2
- Number of doors: Single door
- Protection rating: IP66
- Type: SBX
- Lock type: 3-Points Lock Handle
- Code: 47-(SBX3146015D)
- Manufactured according to: IEC 60529/62208
