Metering Electrical Enclosure Zinc Plated Steel Dimensions 800x600 mm, Depth 300 mm, Thickness 1.5mm | Alfanar
(754 Product Views)

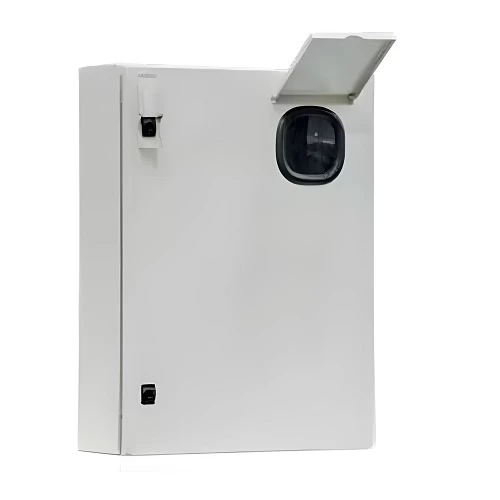

Metering Electrical Enclosure Zinc Plated Steel Dimensions 800x600 mm, Depth 300 mm, Thickness 1.5mm, from Al Fanar, code 47-MSB806030PL-HD, equipped with a transparent display window made of acrylic for easy monitoring of the meters.
Product description
Metering Enclosure manufactured by Al Fanar Company, made of high-quality electrogalvanized (EG) steel sheets and coated with a polyester powder layer to ensure durability and longevity, painted with an insulating layer resistant to harsh weather conditions. The enclosure is equipped with a transparent viewing window made of acrylic material, which allows operators and technicians to easily read and monitor the internal meters installed inside the enclosures without the need to open the door, used to protect electronic devices and electrical components in locations that require protection from weather factors, available in a variety of sizes with the highest quality and best prices.
- Height: 800 mm
- Width: 600 mm
- Depth: 300 mm
- Enclosure Thickness: 1.5 mm
- Mounting Plate Thickness: 2 mm
- Material: Galvanized Steel
- Type of Window: Transparent Window IP54, Transparent Window with Flap Door IP65
- Protection Rating: IP65
- Code: 47-MSB806030PL-HD
- Manufactured according to: IEC 60529/62208
