Metering Electrical Enclosure Zinc Plated Steel Dimensions 1000x600 mm, Depth 150 mm, Thickness 1.5mm | Alfanar
(638 Product Views)
-size_height_45.webp "YouMats"){kind=logo}

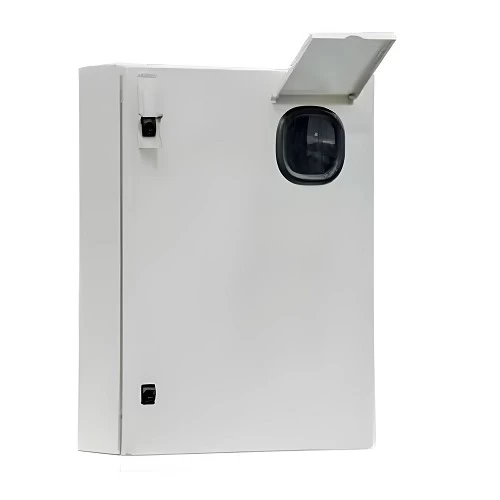

Metering Electrical Enclosure Zinc Plated Steel Dimensions 1000 x 600 mm, depth 150 mm, thickness 1.5 mm, from Al-Fanar Company, code 47-MSBX106015PL-HD, provides comprehensive protection against humidity and sudden changes in temperature.
Product description
Metering Enclosure manufactured by Al Fanar Company, made of high-quality electrogalvanized (EG) steel sheets and coated with a polyester powder layer to ensure durability and longevity, painted with an insulating layer resistant to harsh weather conditions. The enclosure is equipped with a transparent viewing window made of acrylic material, which allows operators and technicians to easily read and monitor the internal meters installed inside the enclosures without the need to open the door, used to protect electronic devices and electrical components in locations that require protection from weather factors, available in a variety of sizes with the highest quality and best prices.
- Height: 1000 mm
- Width: 600 mm
- Depth: 150 mm
- Enclosure Thickness: 1.5 mm
- Mounting Plate Thickness: 2 mm
- Material: Galvanized Steel
- Type of Window: Transparent Window IP54, Transparent Window with Flap Door IP65
- Protection Rating: IP65
- Code: 47-MSBX106015PL-HD
- Manufactured according to: IEC 60529/62208
