Electric Metering Enclosure Galvanized Steel Size 1000x800x300 mm, Thickness 1.5 mm | Alfanar Factory
(792 Product Views)

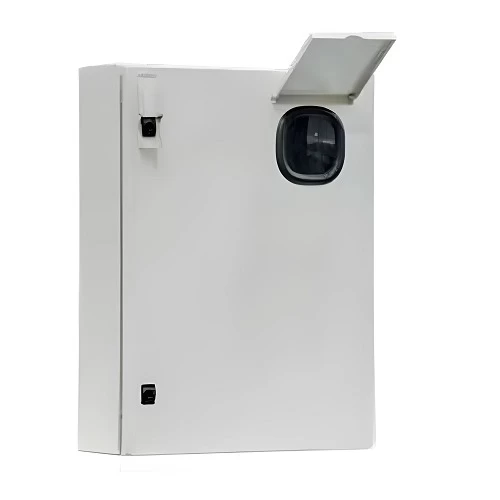

Electric metering enclosure galvanized steel size 1000x800x300 mm, thickness 1.5 mm, Alfanar Factory, code 47-(MSBX108030D), dust, moisture and rain resistant, and it is tightly closed.
Product description
Metering Enclosure manufactured by Al Fanar Company, made of high-quality electrogalvanized (EG) steel sheets and coated with a polyester powder layer to ensure durability and longevity, painted with an insulating layer resistant to harsh weather conditions. The enclosure is equipped with a transparent viewing window made of acrylic material, which allows operators and technicians to easily read and monitor the internal meters installed inside the enclosures without the need to open the door, used to protect electronic devices and electrical components in locations that require protection from weather factors, available in a variety of sizes with the highest quality and best prices.
- Height: 1000 mm
- Width: 800 mm
- Depth: 300 mm
- Enclosure Thickness: 1.5 mm
- Mounting Plate Thickness: 2 mm
- Material: Galvanized Steel
- Window Type: Open Window (Empty Cutout) IPXX
- Protection Rating: IP65
- Code: 47-(MSBX108030D)
- Manufactured according to: IEC 60529/62208
