XLPE/PVC Single Core Stranded Copper Cable 35 mm, 600/1000V | Riyadh Cables

XLPE/PVC Single Core Stranded Copper Cable 35 mm, 600/1000V | Riyadh Cables

(706 Product Views)

YouMats

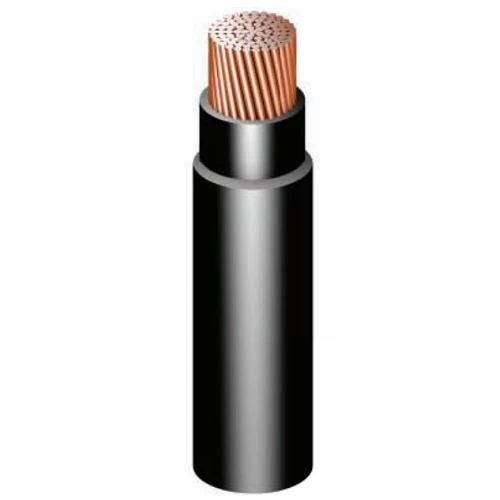

Single core stranded copper electrical cable (CU/XLPE/PVC), 1×35 mm2, Black Color, Produced by Riyadh Cables Company,  XLPE cable is commonly used extensively in power transmission and distribution systems, It can withstand high temperatures up to 90°C for extended periods without compromising performance.

in stock
 Call Now
💳 general.accepted_payments
general.mada
general.master_card
general.visa
general.tamara

Product description

Single core stranded copper electrical cable (CU/XLPE/PVC), Produced by Riyadh Cables Company, Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. It is also jacketed with a high-quality PVC (polyvinyl chloride) outer sheath that provides additional protection against corrosion and mechanical damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

  • Insulation Material: XLPE (Cross-Linked Polyethylene)
  • Outer Sheath: PVC
  • Voltage: 600/1000 volts
  • Wire Type: Round Stranded
  • Number of Cores: Single Core
  • Conductor Size (Cross-Sectional Area): 35 mm2
  • Number of wires: 7
  • Approx Conductor Diameter: 7.44 mm
  • Nominal Insulation Thickness: 0.9 mm
  • Nominal Sheath Thickness: 1.4 mm
  • Approx Overall Diameter: 13 mm
  • Weight: 400 kg/km
  • Cable Length: 1000 meters
  • Phase Core Color: Black
  • Conformity According to International Standard: IEC 60502-1
