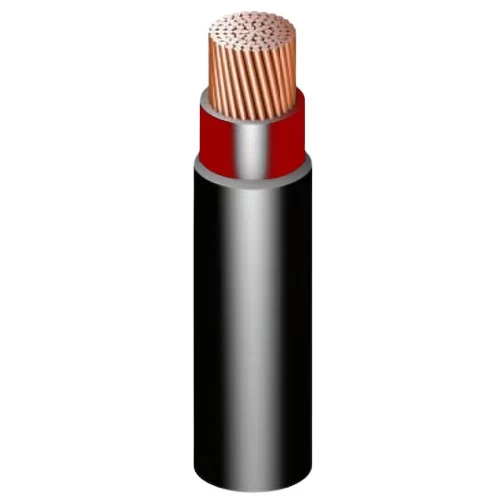

Single core stranded copper electrical cable (CU/XLPE/PVC), Produced by Riyadh Cables Company, cable length 1000 meters, approx conductor diameter 17.4 mm, XLPE cable is commonly used extensively in power transmission and distribution systems, Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability, red color, size 1×185 mm2.
Product description
Single core stranded copper electrical cable (CU/XLPE/PVC), Produced by Riyadh Cables Company, Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. It is also jacketed with a high-quality PVC (polyvinyl chloride) outer sheath that provides additional protection against corrosion and mechanical damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 600/1000 volts
- Wire Type: Round Stranded
- Number of Cores: Single Core
- Conductor Size (Cross-Sectional Area): 185 mm2
- Number of wires: 37
- Approx Conductor Diameter: 17.4 mm
- Nominal Insulation Thickness: 1.6 mm
- Nominal Sheath Thickness: 1.6 mm
- Approx Overall Diameter: 24 mm
- Weight: 1875 kg/km
- Cable Length: 1000 meters
- Phase Core Color: Red
- Conformity According to International Standard: IEC 60502-1
