Single Core Cable 150 sq mm 0.6/1kV, Stranded Copper Conductor, XLPE Insulation, Black Color, 1000 meter | Red Sea Cables

Single Core Cable 150 sq mm 0.6/1kV, Stranded Copper Conductor, XLPE Insulation, Black Color, 1000 meter | Red Sea Cables

(424 Product Views)

YouMats

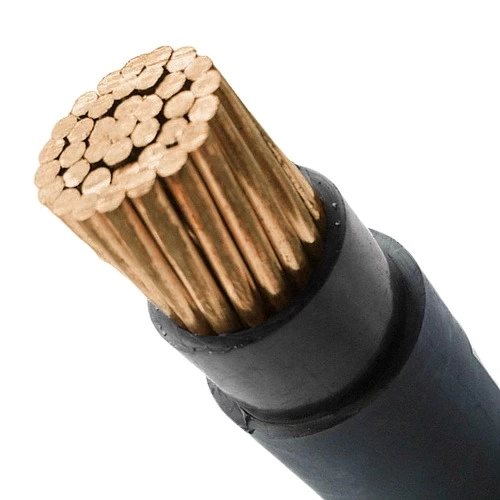

Unarmored stranded copper power cable (CU/XLPE/PVC), single core, 150mm2 size conductor, it sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion phase core color black, produced by Red Sea Cables (RESCAB) company.

in stock
 Call Supplier
general.mada
general.master_card
general.visa
general.tamara

Product description

Unarmored stranded copper power cable (CU/XLPE/PVC), Produced by Red Sea Cables (RESCAB) Company, Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.

  • Conductor: Stranded Copper
  • Insulation Material: XLPE (Cross-Linked Polyethylene)
  • Outer Sheath: PVC
  • Voltage: 0.6/1kV
  • Number of Cores: 1
  • Conductor Size (Cross-Sectional Area):150 mm2
  • Number of wires: 37
  • Nominal Insulation Thickness: 1.4 mm
  • Nominal Sheath Thickness: 1.6 mm
  • Approx Overall Diameter: 21 mm
  • Max DC Conductor Resistance at 20°C: 0.124 ohm/km
  • Weight:1525 kg/km
  • Standard Length: 1000 meters
  • Phase Core Color: Black
  • Standard: IEC 60502-1
