630mm XLPE Single Core Cable Stranded Copper 600/1000V, PVC Sheathed | Riyadh Cables
(2836 Product Views)

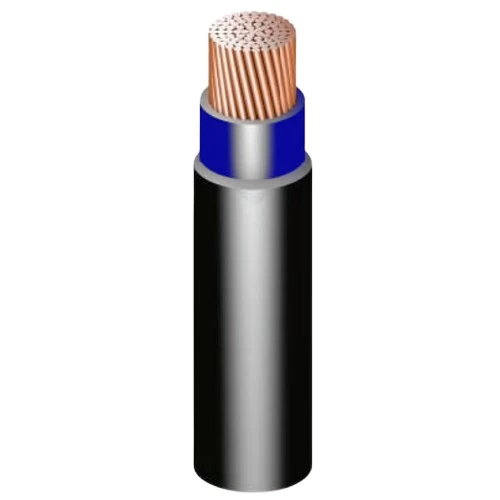

Single core stranded copper electrical cable (CU/XLPE/PVC), It is resistant to corrosion, has a longer lifespan, and is resistant to weather influences, blue Color, Size 1×630 mm2, produced by Riyadh Cables Company.
Product description
Single core stranded copper electrical cable (CU/XLPE/PVC), Produced by Riyadh Cables Company. According to IEC 60502-1(International Electrotechnical Commission) standard. Insulated with XLPE (cross-linked polyethylene) which provides a unique combination of strength, flexibility and reliability making them suitable for a diverse range of applications. It can withstand high temperatures up to 90°C for extended periods without compromising performance. The cable also withstands harsh environmental conditions, including moisture, corrosion and chemicals, making it ideal for outdoor use. Chloride-free, making it environmentally friendly. It is also jacketed with a high-quality PVC (polyvinyl chloride) outer sheath that provides additional protection against corrosion and mechanical damage. XLPE cable is commonly used extensively in power transmission and distribution systems in homes, buildings, offices and industrial applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer jacket : PVC
- Voltage : 600/1000 volts
- Wire Type: Round Stranded
- Number of Cores: Single Core
- Size (cross-sectional area) : 630 mm2
- Number of wires : 91
- Approx conductor diameter : 32.8 mm
- Thickness of first insulation layer : 2.4 mm
- Thickness of outer jacket layer : 2.2 mm
- Approx overall diameter : 42 mm
- Weight : 6425 kg/km
- Length : 500 meters
- Phase Core Color: blue
- Conformity According to International Standard: IEC 60502-1
