25 sq mm Single Core Stranded Copper Cable, XLPE Insulated, Low Voltage 0.6/1kV | Alfanar
(1022 Product Views)

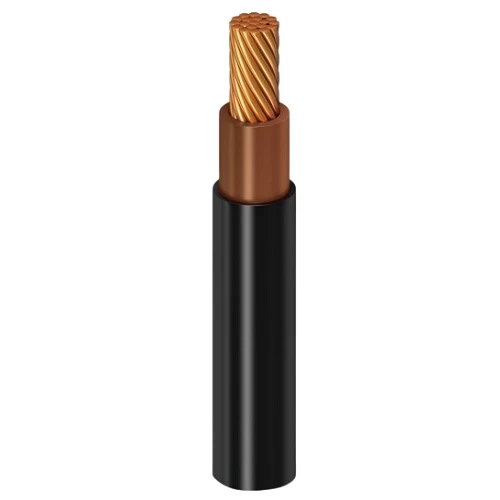

Single core stranded copper cable (CU/XLPE/PVC), size 25mm2, low voltage 600/1000V, phase core color is brown, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable, produced by Alfanar Company.
Product description
Single core stranded copper power cable (CU/XLPE/PVC), produced by Alfanar Company according to the International Electrotechnical Commission standard (IEC 60502-1). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor Type: Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Jacket: PVC (Polyvinyl Chloride)
- Voltage: 600/1000 volts
- Conductor Shape: Round Stranded (rm)
- Number of Cores: Single Core
- Conductor Size (Cross-Sectional Area): 25 mm2
- Approx Overall Diameter: 10.5 mm
- Weight: 300 kg/km
- Max DC Conductor Resistance at 20°C: 0.7270 ohm/km
- Max AC Conductor Resistance at 90°C: 0.9273 ohm/km
- Current Rating Buried Direct in Ground (Trefoil): 124 Ampere
- Current Rating Buried Direct in Ground (Flat Touched): 124 Ampere
- Current Rating In Buried Ducts (Trefoil): 96 Ampere
- Current Rating In Buried Ducts (Flat Touched): 106 Ampere
- Current Rating In Free Air (Trefoil): 122 Ampere
- Current Rating In Free Air (Flat Touched): 125 Ampere
- Current Rating In Free Air (Flat Spaced): 161 Ampere
- Phase Core Color: Brown
- Standard: IEC 60502-1
