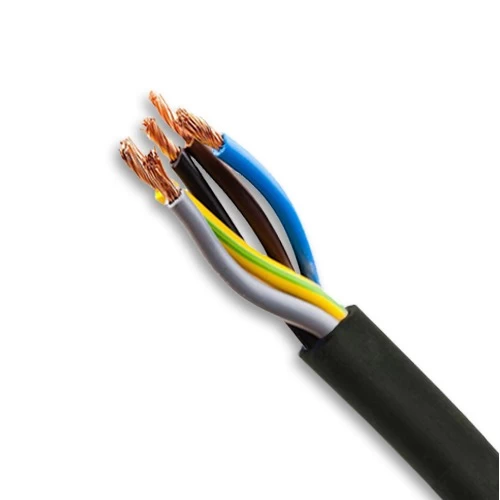

Stranded Copper Cable 4x300+150 mm, 0.6/1 kV, XLPE Insulation, PVC Sheath, 250 meter Length | BAHRA
(1188 Product Views)
Stranded copper cable (CU/XLPE/PVC) 4x300+150 mm, 0.6/1 kV, XLPE insulated, PVC sheath, features high performance and ability to withstand high temperatures. Produced by BAHRA Cables.
Product description
Unarmored stranded copper power cable (CU/XLPE/PVC), Produced by BAHRA Cables Company according to the International Electrotechnical Commission standard (IEC 60502-1). Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90ยฐC for extended periods without compromising performance. It also offers excellent moisture, corrosion, and chemical resistance, ensuring long-term use safety. Additionally, it is sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, and corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes, and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4.5 (4 Core + Neutral Line)
- Conductor Size (Cross-Sectional Area): ( 4cx300 mm2 ) + 150mm2
- Number of Phase Wires: 61
- Number of Neutral Wires: 37
- Nominal Insulation Thickness of Phase: 1.8 mm
- Nominal Insulation Thickness of Neutral: 1.4 mm
- Nominal Sheath Thickness: 2.9 mm
- Approx Overall Diameter: 58.8 mm
- Weight: 10692 kg/km
- Standard Length: 250 meters
- Phase Core Colors: (Blue, Brown, Black, Grey, Green/Yellow)
- Standard: BS 5467
