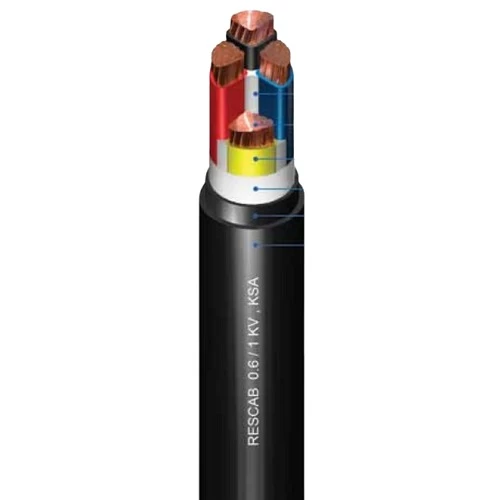

Unarmored Stranded copper power cable (CU/XLPE/PVC), 4 core, 1.5mm2 size conductor, 0.6/1kV, It is characterized by its high ability to transfer electric current efficiently without significant energy loss, produced by the Red Sea Cables Company (RESCAB).
Product description
Unarmored Stranded copper power cable (CU/XLPE/PVC), Produced by Red Sea Cables (RESCAB) Company. Insulated with XLPE (cross-linked polyethylene), which offers an exceptional combination of properties that make it the ideal choice for a wide range of power and energy transmission applications due to its excellent electrical, thermal, and mechanical properties, where it is characterized by its ability to withstand high temperatures up to 90°C for extended periods without compromising performance. It also offers excellent resistance to moisture, corrosion, and chemicals, ensuring long-term safety of use. Additionally, sheathed with PVC (polyvinyl chloride) material, which provides extra protection for the cable against shocks, abrasion, corrosion, and prevents harmful UV rays from damaging the cable. This makes it suitable for both indoor and outdoor applications. Available in different shapes, sizes and conductor ratings to meet diverse application requirements.
- Conductor: Stranded Copper
- Insulation Material: XLPE (Cross-Linked Polyethylene)
- Outer Sheath: PVC
- Voltage: 0.6/1kV
- Number of Cores: 4
- Conductor Size (Cross-Sectional Area): 1.5 mm2
- Number of wires: 7
- Nominal Insulation Thickness: 0.7 mm
- Nominal Sheath Thickness: 1.8 mm
- Approx Overall Diameter: 14 mm
- Max DC Conductor Resistance at 20°C: 12.1 ohm/km
- Weight: 250 kg/km
- Standard Length: 1000 meters
- Phase Core Color: red, yellow, blue, black
- Standard: IEC 60502-1
